Sethco

Drum Pump Motor, Dbl Insulated Electric

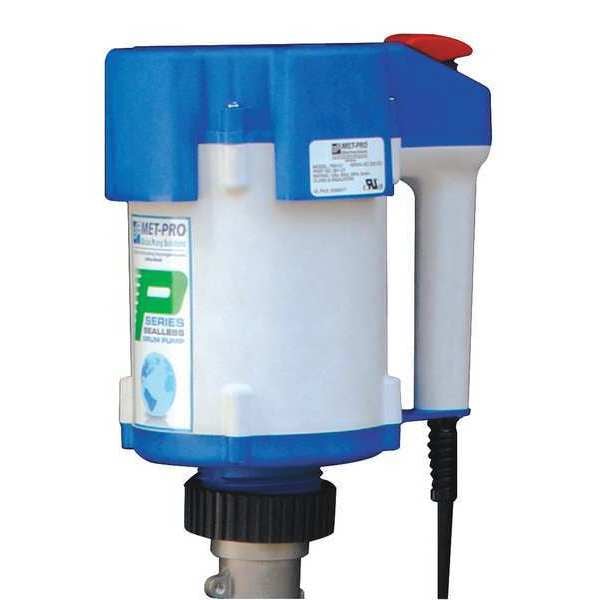

Sethco Drum Pump Motor, Dbl Insulated Electric 384-B40CG-VV
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$1,243.54
  • Item: Electric Drum Pump Motor
  • Type: Double Insulated Electric
  • Min. Operating Temp.: 32 Degrees F
See full product details
This item ships free.
Total: $1,243.54

Sethco #384-B40CG-VV Specifications

  • Item: Electric Drum Pump Motor
  • Type: Double Insulated Electric
  • Min. Operating Temp.: 32 Degrees F
  • Series: 384 Mag-Drive Drum Pumps
  • Variable Speed: No
  • Power Source: Electric
  • Max. Flow Rate: 13 gpm
  • For Container Size: 55 gal
  • Cord Length: 10 ft
  • Max. Head Pressure: 10 psi
  • Motor RPM: 3400
  • Thermal Protection: Yes
  • Number of Phases: 1
  • Max. Viscosity: 750 SUS
  • Motor HP: 1/5 hp
  • Full Load Amps: 1.6 A
  • Max. Head: 24
  • Max. Operating Temp.: 160 Degrees F
  • Plug Type: NEMA 5-15P
  • For Container Type: Drum, Tank, Tote
  • Motor Type: AC Induction Motor
  • Housing Material: CPVC, Polypropylene
  • Seal Material: Viton
  • Agency Compliance: N/A
  • Rated Voltage: 115V AC
  • Motor Enclosure: TENV
  • Explosion Proof: No
  • Country of Origin (subject to change): United States
Feedback Help us improve our product information

Description

Electric Drum Pump Motor, Pump Package Type Drum Pump Motor, Power Source Electric, Motor Type AC Induction Motor, Motor HP 1/5 hp, Motor Enclosure TENV, Explosion Proof No, Rated Voltage 115V AC, Full Load Amps 1.6 A, Thermal Protection Yes, Variable Speed No, Housing Material CPVC, Polypropylene, Seal Material Viton, Cord Length 10 ft, Plug Type NEMA 5-15P, Max. Flow Rate 13 gpm, For Container Size 55 gal, For Container Type Drum, Tank, Tote, Min. Operating Temp. 32 Degrees F
