Sharkbite

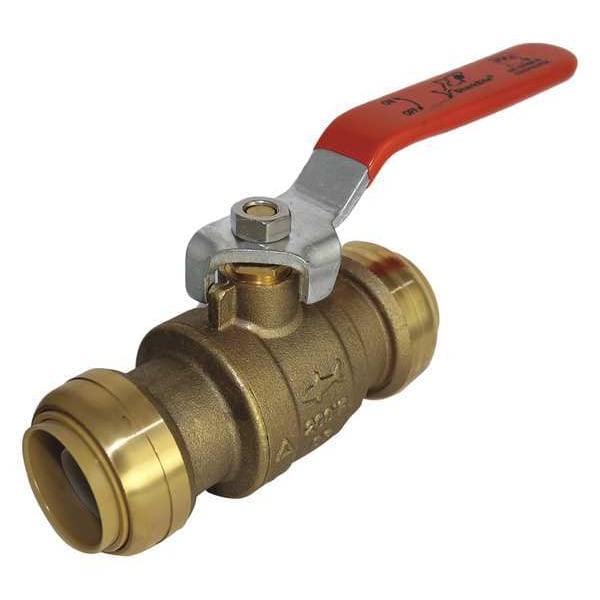

1" Push Brass Ball Valve Inline

product price: $24.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pipe Size 1"
  • Body Material Lead-Free DZR Brass
  • Body Style Inline
  • Tube Size 1"
  • Port Full
See all product information

Product Information

Dimensions

Pipe Size 1"
Tube Size 1"
Overall Length 4.4 in
Connection Size - Side 2 1 in
Handle Length 4.66 in
Connection Size - Side 1 1 in
Nominal Valve Size 1 in

Details

Body Material Lead-Free DZR Brass
Body Style Inline
Port Full
Seat Material PTFE
Temp. Range 0 Degrees to 200 Degrees F
Compliance IGC-157/NSF-61
Ball Material Lead Free Brass
Max. Steam Pressure 200 psi WSP
Ball Valve Product Group Manual
Handle Material Zinc Plated Steel
Connection Type Push x Push
Standards UPC, IPC, cUPC, IAPMO
Valve Structure 2-Piece
Item Ball Valve
Max. Pressure 200 psi CWP
Hose I.D. 1"
Ball Valve Basic Body Material Brass
Stem Type Blowout Proof
Body Seal Material EPDM
Handle Type Lever
Stem Material Lead Free Brass
Seal Material EPDM
Connection Push To Connect
Type Two Piece
Sub-Category Brass Ball Valves
Material of Construction Brass
Connection Type - Side 1 Push
Valve Body Style Straight
NSF Certifications for Food and Drinking Water NSF 61
Maximum Pressure - Combustible Gas Not Rated
Maximum Pressure - Steam Not Rated
Operating Temperature - Maximum 200 Degrees F
Valve Construction Two-Piece
For Media Water
Valve Ways 2-Way
Operating Temperature - Minimum 0 Degrees F
3-A Standard Compliance Not Rated
Maximum Pressure - Operating 200 psi
Connection Type - Side 2 Push
Ball Port Style Full Port
Color - Valve Handle Red

Description

Manual Two-Way Ball Valve, Body Material Brass, For Media Water, Valve Construction Two-Piece, Nominal Valve Size 1 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 200 psi, Maximum Pressure - Steam Not Rated, Maximum Pressure - Combustible Gas Not Rated, Ball Material Brass, Ball Port Style Full Port, Handle Type Lever, Connection Size - Side 1 1 in, Valve Ways 2-Way, Seal Material EPDM
