Shop SHARKBITE

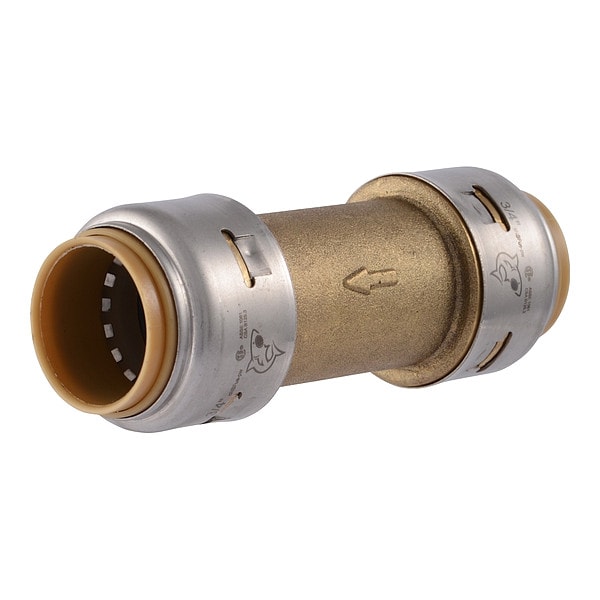

Check Valve

  • Mfr # UR2016

  • Zoro # G710481868

product price:  $28.25
/ea

Key Features

Connection Type
Push x Push
Body Material
Brass
Seat Material
Brass
Max. Water Pressure - Valves
200 psi
Max. Temp. - Valves
200 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
UR2016
Zoro #
G710481868
UPC #
-
Country of Origin
Australia

Dimensions

Overall Length
3.5 in
Pipe or Tube Size
3/4 in
Nominal Valve Size
3/4 in
Connection Size - Side 2
3/4 in
Connection Size - Side 1
3/4 in
Wire Rope Length
3.5 in

Details

Connection Type
Push x Push
Body Material
Brass
Seat Material
Brass
Max. Water Pressure - Valves
200 psi
Max. Temp. - Valves
200 Degrees F
Item - Check Valves
Check Valve
Cracking Pressure
2 psi
Mechanism and Body Design
Inline Spring
Item
Check Valve
Body Material - Valves
Brass
Standards
ANSI 14, ANSI 372, ASSE 1061, ASTM E84, ASTM El19, CAN/ULC 5101, CAN/ULC 5102.2, CSA B125.3, UL 263
Application - Valves
General Purpose
Flow Design
Single
Min. Temp. - Valves
40 Degrees F
Mounting Orientation
Horizontal, Vertical
Maximum Pressure - Steam
Not Rated
Includes Counterweight
No Counterweight
Operating Temperature - Maximum
200 Degrees F
Vacuum Service Rating
Not Rated
Connection Type - Side 2
Push
Silent Check
Standard
NSF Certifications for Food and Drinking Water
NSF 61
Operating Temperature - Minimum
40 Degrees F
Valve Body Style
Inline
Connection Type - Side 1
Push
Check Mechanism Material
EPDM
Maximum Pressure - Operating
400 psi
Check Mechanism
Piston
3-A Standard Compliance
Not Rated
For Media
Direct Burial, Hydronic Heating/Cooling, Potable Water, Recirculation

Description

Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Inline Spring, Body Material - Valves Brass, Pipe or Tube Size 3/4 in, Connection Type Push x Push, Cracking Pressure 2 psi, Mounting Orientation Horizontal, Vertical, Max. Temp. - Valves 200 Degrees F, Min. Temp. - Valves 40 Degrees F, Max. Water Pressure - Valves 200 psi, Seat Material Brass, Application - Valves General Purpose, Hex Size Not Applicable
