  11. Male Adapter, 3/4 in Tube Size, Brass, Brass
This item is Discontinued.

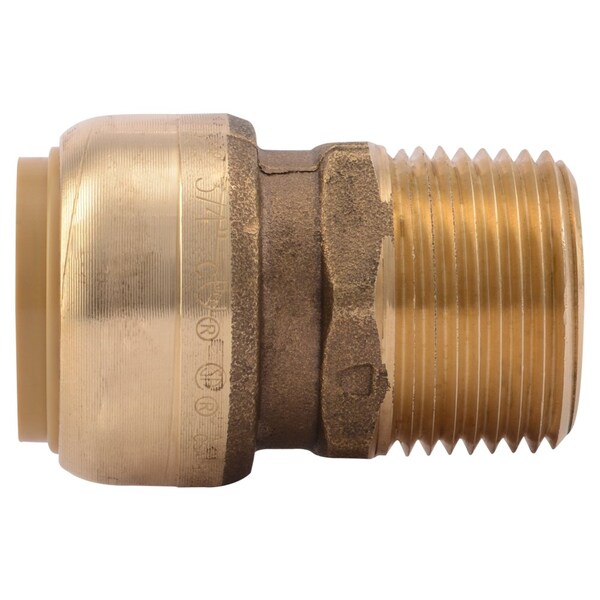

Sharkbite Male Adapter, 3/4 in Tube Size, Brass, Brass U134LF

Male Adapter, 3/4 in Tube Size, Brass, Brass (Discontinued)

  • Mfr # U134LF
  • Zoro # G4543323
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
U134LF
Zoro #
G4543323
UPC #
697285465176
Country of Origin
Australia

Dimensions

Tube Size
3/4 in
Pipe Size - Pipe Fitting
3/4 in
Pipe Size (Fittings)
3/4"
Overall Length
1 7/8 in
Fitting Side A Tube Outer Diameter
3/4 in
Fitting Side B Pipe Size
3/4 in
Fitting Side 2 Pipe Size
3/4 in
Fitting Side 1 Tube Outer Diameter
3/4 in

Details

Item
Male Adapter
Tube Fitting Material
DZR Brass
Specific Fitting Shape
Straight Adapter
Fitting Connection Type
Push-Fit x MNPT
Max. Pressure
200 psi
Basic Pipe Fitting Material
Metal
Standards
ASSE 1061/NSF 66, CPUC Listed, IAPMO, IGC 188, IPC, NSF/ANSI 61, UPC
Temp. Range
0 Degrees to 200 Degrees F
Basic Pipe Fitting Shape
Adapter
Special Features
Connects Copper, Pex and CPVC in any Combination without the Use of Soldering, Unions or Glue
Gasket Material
EPDM
Pipe Fitting Connection Type
Push-To-Connect
Specific Pipe Fitting Shape
Adapter
Color
Brass
System of Measurement
Imperial
Application
Potable Water
Fitting Material
Brass
Resistance Properties
Corrosion-Resistant
Release Ring Material
EPDM
Maximum Operating Pressure
200 psi
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Not Included
Fitting Side A Connection Type
Push-to-Connect
Compatible Tube Material
Copper, CPVC, HDPE, PEX, Polyethylene
Minimum Operating Temperature
0 Degrees F
Maximum Operating Temperature
200 Degrees F
Fitting Side B Connection Type
MNPT
Fitting Shape
Straight
For Media Type
Potable Water
Operating Pressure - Maximum
200 psi
Connector Type
Adapter
Fitting Side 1 Connection Type
Push-to-Connect
Fitting Side 2 Connection Type
MNPT
Operating Temperature - Maximum
200 Degrees F
Operating Temperature - Minimum
0 Degrees F

Description

Male Adapter, Application Potable Water, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type MNPT, Fitting Side B Pipe Size 3/4 in, Fitting Side A Tube Outer Diameter 3/4 in, Fitting Material Brass, Color Brass, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 200 Degrees F, Overall Length 1 7/8 in, Specific Fitting Shape Straight Adapter
