  11. Manual 2-Way Ball Valve, Push, Brass

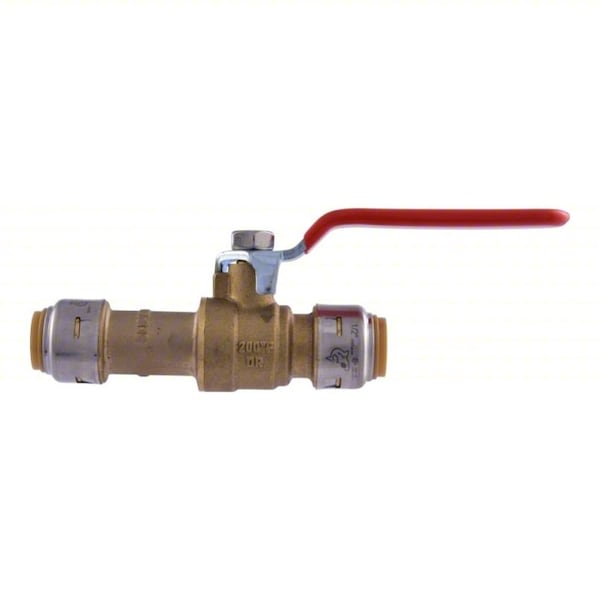

Sharkbite Manual 2-Way Ball Valve, Push, Brass UR24735G - main

Manual 2-Way Ball Valve, Push, Brass

  • Mfr # UR24735G

  • Zoro # G408627622

product price: $27.85
/ea
Sold in multiples of 6 for $167.10

Key Features

Ball Material
Chrome-Plated Brass
Body Style
Straight
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
UR24735G
Zoro #
G408627622
UPC #
697285053045
Country of Origin
China

Dimensions

Pipe Size
1/2 in
Overall Length
2.1 in
Connection Size - Side 1
1/2 in
Connection Size - Side 2
1/2 in
Nominal Valve Size
1/2 in

Details

Ball Material
Chrome-Plated Brass
Body Style
Straight
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
For Media
Water
Connection Type
Push x Push
Item
Manual Two-Way Ball Valve
Handle Type
Lever
Handle Material
Steel
Max. Pressure
250 PSI
Temp. Range
200 Degrees F
Features
25-Year Warranty when Properly Installed on PEX, Copper, CPVC and PE-RT, can be easily Removed using a Disconnect Clip, Disconnect Tongs or Pro Disconnect Tool, can be Installed on wet lines and Pressure Tested Immediately, can be Rotated after Installation, Compatible with Copper and CPVC Pipe only, Half the Insertion Effort, Double the Burst Pressure, Ideal for Freezes and Emergency Repairs, No Special Tools, Crimping, Soldering or Glue Required, Stainless Steel Retainer adds Strength and Durability
Seat Material
PTFE
Standards
ASME A112.4.14/CSA B125.14, NSF/ANSI 14, NSF/ANSI/CAN 372
Compliance
ASME A112.4.14/CSA B125.14, NSF/ANSI 14, NSF/ANSI/CAN 372, NSF/ANSI/CAN 61
Seal Material
PTFE
Body Material
Brass
Maximum Pressure - Combustible Gas
Not Rated
Operating Temperature - Minimum
200 Degrees F
Connection Type - Side 1
Push
NSF Certifications for Food and Drinking Water
NSF 61
3-A Standard Compliance
Not Rated
Connection Type - Side 2
Push
Handle - Locking
Locking
Color - Valve Handle
Red
Operating Temperature - Maximum
200 Degrees F

Description

Manual Two-Way Ball Valve, Body Material Brass, For Media Water, Valve Construction Two-Piece, Nominal Valve Size 1/2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 250 psi, Maximum Pressure - Combustible Gas Not Rated, Ball Material Chrome-Plated Brass, Ball Port Style Full Port, Handle - Locking Locking, Handle Type Lever, Connection Size - Side 1 1/2 in, Valve Ways 2-Way, Seal Material PTFE

Restrictions
