This item is Discontinued.

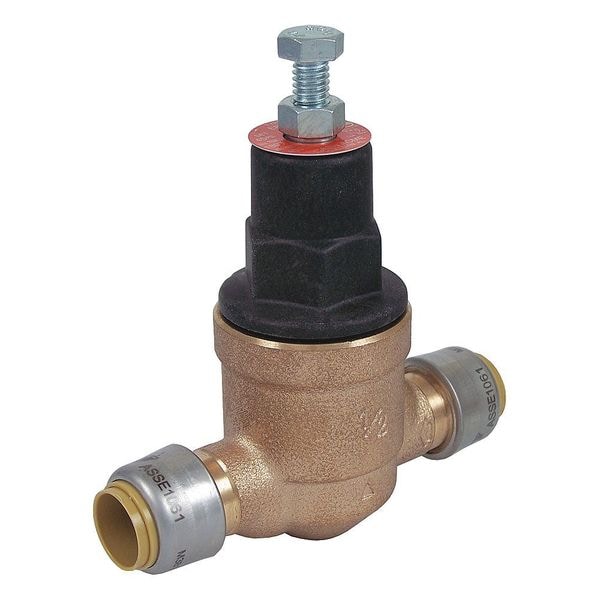

Sharkbite Pressure Reducing Valve, 4-15/64 in. L 23807-0045

Pressure Reducing Valve, 4-15/64 in. L (Discontinued)

  • Mfr # 23807-0045
  • Zoro # G0203710
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
23807-0045
Zoro #
G0203710
UPC #
697285238077
Country of Origin
United States

Dimensions

Pipe Size
1/2"
Inlet Size
1/2"
Outlet Size
1/2"
Length
4 15/64 in
Height
5 1/8 in
Overall Height
5 1/8 in
Overall Width
4 1/4 in
Outlet Connection Size
1/2 in
Inlet Connection Size
1/2 in

Details

Connection Type
Push to Connect
Body Material
Bronze
Max. Pressure
200 psi
Max. Temp.
180 Degrees F
Item
Pressure Reducing Valve
Pressure Adjustment Range
10 to 70 psi
Seal Material
EPDM
Compliance
IAPMO
Standards
ASSE, NSF 372
Application
Water
Inlet Connection Type
Push to Connect
Pilot Adjustment - Maximum
70 psi
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
33 Degrees F
For Media
Water
Operating Pressure - Maximum
200 psi
NSF Certifications for Food and Drinking Water
NSF 372
Pilot Adjustment - Minimum
10 psi
Outlet Connection Type
Push-To-Connect

Description

Pressure Reducing Valve, Body Material Bronze, Inlet Size 1/2 in, Outlet Size 1/2 in, Length 4 1/4 in, Height 5 1/8 in, Application Water, Connection Type Push to Connect, Pressure Adjustment Range 10 to 70 psi, Seal Material EPDM, Max. Temp. 180 Degrees F, Pipe Size 1/2 in, Max. Pressure 200 psi, Standards ASSE 1003, ASSE 1061, CSA B356, IAPMO, Compliance IAPMO

Restrictions

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
