  11. Push-to-Connect Fitting Reducer, 1 in x 3/4 in Tube Size, Brass, Brass

This item is Discontinued.

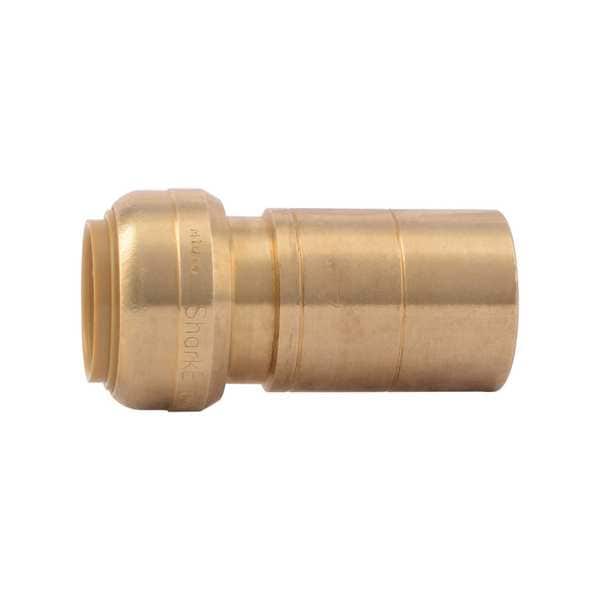

Sharkbite Push-to-Connect Fitting Reducer, 1 in x 3/4 in Tube Size, Brass, Brass U724LF

Push-to-Connect Fitting Reducer, 1 in x 3/4 in Tube Size, Brass, Brass (Discontinued)

  • Mfr # U724LF
  • Zoro # G4563063
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
U724LF
Zoro #
G4563063
UPC #
697285150089
Country of Origin
Australia

Dimensions

Tube Size
1 in x 3/4 in
Overall Length
1 in
Fitting Side A Tube Outer Diameter
1 in
Fitting Side B Tube Outer Diameter
3/4 in
For Tube Outside Diameter
1 in, 3/4 in

Details

Item
Fitting Reducer
Tube Fitting Material
DZR Brass
Specific Fitting Shape
Straight Reducing Connector
Fitting Connection Type
Push-Fit
Max. Pressure
200 psi
Special Features
Connects Copper, Pex and CPVC in any Combination without the Use of Soldering, Unions or Glue
Basic Pipe Fitting Shape
Adapter
Pipe Fitting Connection Type
Push-Fit
Temp. Range
0 Degrees to 200 Degrees F
Standards
ASSE 1061/NSF 98, CPUC Listed, IAPMO, IGC 188, IPC, NSF/ANSI 61, UPC
Specific Pipe Fitting Shape
Reducer
Gasket Material
EPDM
Basic Pipe Fitting Material
Metal
System of Measurement
Imperial
Application
Potable Water
Color
Brass
Connection Type
Push-to-Connect x Push-to-Connect
Maximum Operating Temperature
200 Degrees F
Release Ring Material
EPDM
Minimum Operating Temperature
0 Degrees F
Resistance Properties
Corrosion-Resistant
Fitting Side A Connection Type
Push-to-Connect
Maximum Operating Pressure
200 psi
Compatible Tube Material
Copper, CPVC, HDPE, PEX, Polyethylene
Includes Pre-Applied Thread Sealant
No
Fitting Side B Connection Type
Push-to-Connect
Fitting Material
Brass
Fitting Shape
Connector
For Tube OD
1 in x 3/4 in
Fitting Body Material
Brass
End Connection Type
Push-to-Connect

Description

Fitting Reducer, Application Potable Water, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type Push-to-Connect, Fitting Side A Tube Outer Diameter 1 in, Fitting Side B Tube Outer Diameter 3/4 in, Fitting Material Brass, Color Brass, Includes Pre-Applied Thread Sealant No, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 200 Degrees F, Overall Length 1 in, Specific Fitting Shape Straight Reducing Connector

Restrictions
