  11. Tee, 1 in Tube Size, DZR Brass, Brass

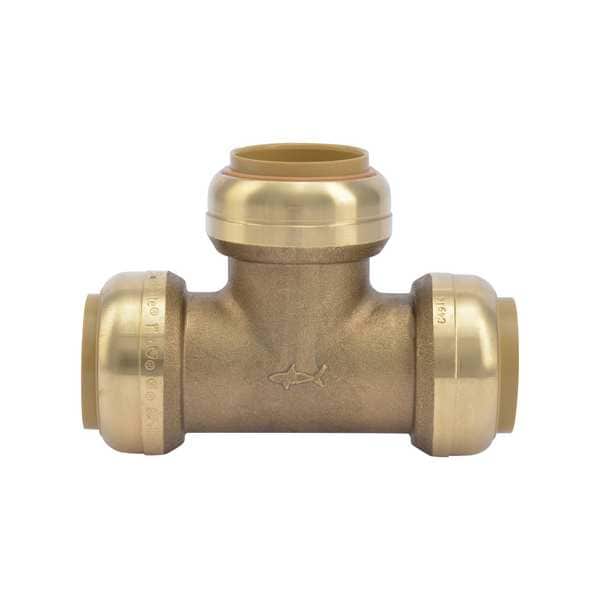

Sharkbite Tee, 1 in Tube Size, DZR Brass, Brass U374LF - main

Tee, 1 in Tube Size, DZR Brass, Brass

  • Mfr # U374LF

  • Zoro # G4579802

product price: $25.15
/ea

Key Features

Tube Fitting Material
DZR Brass
Specific Fitting Shape
Tee
Fitting Connection Type
Push-Fit
Tube Size
1 in
Max. Pressure
200 psi
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
U374LF
Zoro #
G4579802
UPC #
697285465442
Country of Origin
Australia

Dimensions

Tube Size
1 in
Overall Length
9 in
Fitting Side C Tube Outer Diameter
1 in
Fitting Side B Tube Outer Diameter
1 in
Fitting Side A Tube Outer Diameter
1 in
Fitting Side 2 Tube Outer Diameter
1 in
Fitting Side 3 Tube Outer Diameter
1 in
Fitting Side 1 Tube Outer Diameter
1 in

Details

Item
Tee
Tube Fitting Material
DZR Brass
Specific Fitting Shape
Tee
Fitting Connection Type
Push-Fit
Max. Pressure
200 psi
Standards
ASSE 1061, ASTM E119, ASTM E84, CAN/ULC S101, CAN/ULC S102.2, CSA B125.3, NSF/ANSI 372, NSF/ANSI/CAN 61, UL 263
Special Features
Connects Copper, Pex and CPVC in any Combination without the Use of Soldering, Unions or Glue
Basic Pipe Fitting Shape
Tee
Specific Pipe Fitting Shape
Tee
Temp. Range
0 Degrees to 200 Degrees F
Pipe Fitting Connection Type
Push-Fit
Basic Pipe Fitting Material
Metal
Gasket Material
EPDM
Color
Brass
System of Measurement
Imperial
Application
Potable Water
Fitting Side B Connection Type
Push-to-Connect
Fitting Side A Connection Type
Push-to-Connect
Compatible Tube Material
Copper, CPVC, HDPE, PE-RT, PEX
Fitting Side C Connection Type
Push-to-Connect
Maximum Operating Pressure
200 psi
Fitting Material
DZR Brass
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Not Included
Maximum Operating Temperature
200 Degrees F
Minimum Operating Temperature
0 Degrees F
Fitting Shape
Tee
For Media Type
Potable Water
Fitting Side 1 Connection Type
Push-to-Connect
Fitting Side 3 Connection Type
Push-to-Connect
Fitting Side 2 Connection Type
Push-to-Connect
Operating Temperature - Maximum
200 Degrees F
Operating Temperature - Minimum
0 Degrees F

Description

Tee, Application Potable Water, Color Brass, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type Push-to-Connect, Fitting Side C Connection Type Push-to-Connect, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included, Fitting Side A Tube Outer Diameter 1 in, Fitting Side B Tube Outer Diameter 1 in, Fitting Side C Tube Outer Diameter 1 in, Fitting Material DZR Brass, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 200 Degrees F
