Sharpe Valves

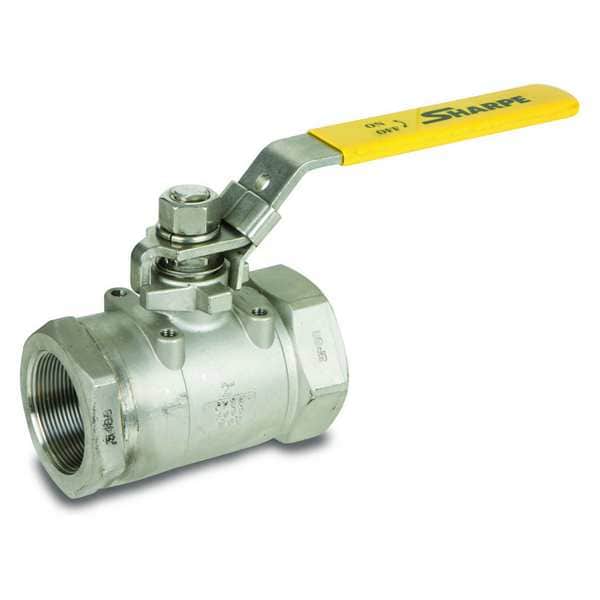

1/4" FNPT Stainless Steel Ball Valve Inline

product price: $93.79
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pipe Size 1/4"
  • Body Material 316 Stainless Steel
  • Body Style Inline
  • Compliance NACE MR-01-75 2002
  • Handle Type Locking Lever
See all product information

Product Information

Dimensions

Pipe Size 1/4"
Overall Length 2.52 in
Nominal Valve Size 1/4 in
Handle Height 1.25 in
Handle Length 3.7 in
Connection Size - Side 2 1/4 in
Connection Size - Side 1 1/4 in

Details

Body Material 316 Stainless Steel
Body Style Inline
Compliance NACE MR-01-75 2002
Handle Type Locking Lever
Ball Valve Product Group Manual
Handle Material Zinc Plated Steel with PVC Grip
Stem Material 316 Stainless Steel
Body Seal Material PTFE
Standards ASTM A351 CF8M
Max. Pressure 3000 psi CWP
Temp. Range 0 Degrees to 200 Degrees F
Seat Material Delrin(R)
Item Ball Valve
Ball Material 316 stainless steel
Ball Valve Basic Body Material Stainless Steel
Stem Type Blowout Proof
Port Full
Features Actuator Mounting Pad
Connection Type FNPT x FNPT
Valve Structure 2-Piece
Seal Material PTFE
Connection FNPT
Type Two Piece
Material of Construction 316 Stainless Steel
Sub-Category Steel Ball Valves
Connection Gender - Side 1 Female
Valve Ways 2-Way
Coefficient of Volume (Cv) 7
Connection Type - Side 1 NPT
Handle - Locking Locking
Ball Port Style Full Port
Maximum Pressure - Operating 3,000 psi
Connection Gender - Side 2 Female
Maximum Pressure - Combustible Gas Not Rated
Color - Valve Handle Yellow
Operating Temperature - Minimum 0 Degrees F
Vacuum Service Rating 29 in Hg
3-A Standard Compliance Not Rated
Operating Temperature - Maximum 200 Degrees F
Valve Construction Two-Piece
For Media Air, Corrosive Chemicals, Non-Potable Water
Connection Type - Side 2 NPT
Included Mounting ISO 5211 Actuator Mounting Pad
Valve Body Style Straight

Description

Manual Two-Way Ball Valve, Body Material Stainless Steel, For Media Air, Corrosive Chemicals, Non-Potable Water, Valve Construction Two-Piece, Nominal Valve Size 1/4 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 3,000 psi, Maximum Pressure - Steam Not Applicable, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating 29 in Hg, Ball Material 316 Stainless Steel, Ball Port Style Full Port
