Shop SHARPE VALVES

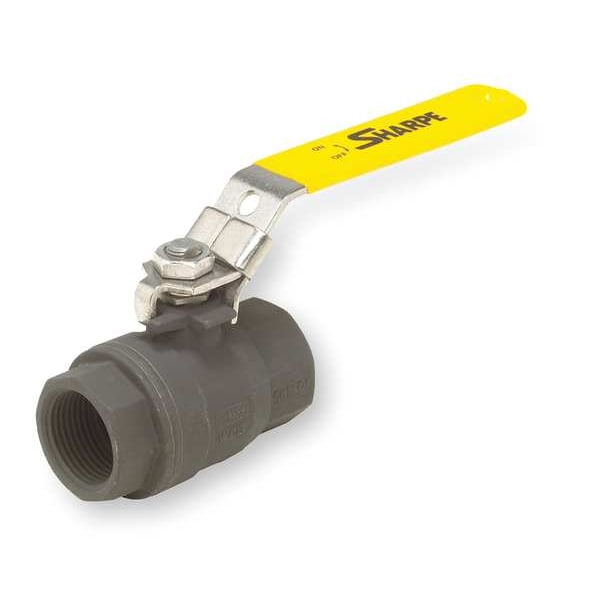

3/8" FNPT Carbon Steel Ball Valve Inline

  • Mfr # 4353010380

  • Zoro # G1940802

product price:  $57.99
/ea

Key Features

Ball Material
316 Stainless Steel
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
4353010380
Zoro #
G1940802
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Pipe Size
3/8 in
Overall Length
2.52 in
Handle Height
1.25 in
Nominal Valve Size
3/8 in
Handle Length
3.7 in
Connection Size - Side 1
3/8 in
Connection Size - Side 2
3/8 in

Details

Ball Material
316 Stainless Steel
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
For Media
Air, Non-Potable Water
Connection Type
FNPT x FNPT
Item
Ball Valve
Features
Actuator Mounting Pad
Body Material
Carbon Steel
Seat Material
Delrin, PEEK
Temp. Range
0 Degrees to 200 Degrees F
Standards
ISO 5211, MSS SP-110, NACE MR0175 2002
Max. Pressure
3,000 PSI CWP
Compliance
NACE MR-01-75 2002
Handle Type
Lever
Stem Type
Blowout Resistant
Stem Material
316 Stainless Steel
Ball Valve Product Group
Manual
Handle Material
Stainless Steel
Seal Material
PTFE
Type
Two Piece
Connection Gender - Side 2
Female
Connection Gender - Side 1
Female
Connection Type - Side 2
NPT
Vacuum Service Rating
29 in Hg
Maximum Pressure - Steam
Not Rated
Maximum Pressure - Combustible Gas
Not Rated
Operating Temperature - Maximum
200 Degrees F
Handle - Locking
Locking
Connection Type - Side 1
NPT
Included Mounting
ISO 5211 Actuator Mounting Pad
Coefficient of Volume (Cv)
8
Operating Temperature - Minimum
0 Degrees F
Color - Valve Handle
Yellow
3-A Standard Compliance
Not Rated
Valve Series
50C

Description

Manual Two-Way Ball Valve, Body Material Carbon Steel, For Media Air, Non-Potable Water, Valve Construction Two-Piece, Nominal Valve Size 3/8 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 3,000 psi, Maximum Pressure - Steam Not Rated, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating 29 in Hg, Ball Material 316 Stainless Steel, Ball Port Style Full Port, Handle - Locking Locking

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
