Shop All Ball Valves
Sharpe Valves

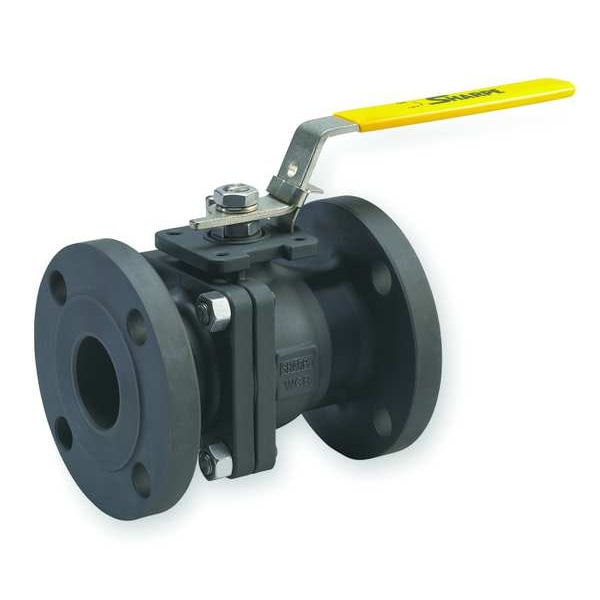

2" Flanged Carbon Steel Ball Valve Inline

product price: $287.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pipe Size 2"
  • Body Material Carbon Steel
  • Body Style Inline
  • Stem Type Self-Adjusting
  • Ball Material 316 stainless steel
See all product information

Product Information

Dimensions

Pipe Size 2"
Overall Length 4.16 in
Connection Size - Side 2 2 in
Nominal Valve Size 2 in
Connection Size - Side 1 2 in
Handle Length 9.03 in

Details

Body Material Carbon Steel
Body Style Inline
Stem Type Self-Adjusting
Ball Material 316 stainless steel
Seat Material TFM(TM)
Compliance NACE MR-01-75
Temp. Range 0 Degrees to 400 Degrees F
Max. Pressure 285 psi CWP
Features 150# Flanged
Connection Type Flanged x Flanged
Body Seal Material PTFE
Ball Valve Product Group Manual
Stem Material 316 Stainless Steel
Standards ASME B16.34
Max. Steam Pressure 125 psi WSP
Ball Valve Basic Body Material Carbon Steel
Handle Material 301 Stainless Steel with PVC Grip
Item Ball Valve
Port Full
Handle Type Locking Lever
Valve Structure 2-Piece
Seal Material PTFE
Type Two Piece
Connection Flanged
Sub-Category Steel Ball Valves
Material of Construction Carbon Steel
Coefficient of Volume (Cv) 480
ANSI Flange Class Class 150
Maximum Pressure - Steam 200 psi
Color - Valve Handle Yellow
Operating Temperature - Minimum 0 Degrees F
Connection Type - Side 2 Flange
Handle - Locking Locking
Operating Temperature - Maximum 450 Degrees F
Connection Type - Side 1 Flange
Valve Construction Two-Piece
Maximum Pressure - Combustible Gas Not Rated
3-A Standard Compliance Not Rated
Maximum Pressure - Operating 285 psi
Ball Port Style Full Port
Valve Body Style Straight
Included Mounting ISO 5211 Actuator Mounting Pad
For Media Air, Corrosive Chemicals, Non-Potable Water, Steam
Vacuum Service Rating 29 in Hg
Valve Ways 2-Way

Description

Manual Two-Way Ball Valve, Body Material Carbon Steel, For Media Air, Corrosive Chemicals, Non-Potable Water, Steam, Valve Construction Two-Piece, Nominal Valve Size 2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 285 psi, Maximum Pressure - Steam 200 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating 29 in Hg, Ball Material 316 Stainless Steel, Ball Port Style Full Port
