Shop SHAT-R-SHIELD

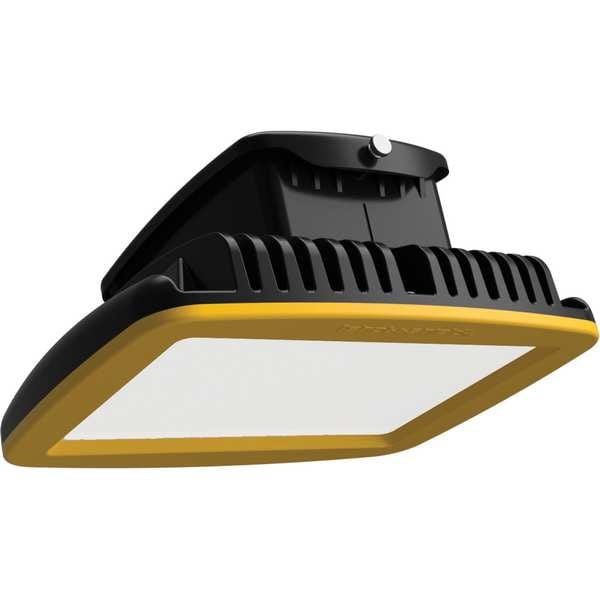

Hybrid Fixture, LED, 11200 lm, 120/277V

  • Mfr # 090HY50STFRVLYHZ00SCH701

  • Zoro # G401209931

product price:  $1,260.99
/ea
Free Shipping & Returns

Key Features

Standards
ABS, cULus, NSF, UL1598, UL1598A, UL844, USDA
Lumens
11,200 lm
Lighting Technology
LED
Series
Incoplas LED Hybrid HazLoc
Max. Fixture Wattage
90 W
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
090HY50STFRVLYHZ00SCH701
Zoro #
G401209931
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
5 5/8 in
Overall Length
13 in
Overall Width
10 1/4 in
Nominal Size - Fixtures
13 in x 10.25 in x 5.6 in
Nominal Length
1 ft

Details

Item
Hybrid Fixture
Standards
ABS, cULus, NSF, UL1598, UL1598A, UL844, USDA
Lumens
11,200 lm
Lighting Technology
LED
Series
Incoplas LED Hybrid HazLoc
Max. Fixture Wattage
90 W
Fixture Voltage
120/277 V AC
Fixture Rated Life
100,000 hr
Color Temperature
5000K
Safety Rating
Class 1, Division 2, Groups: A, B, C, D, Class 2, Division 2, Groups: F, G, Class 3, Divisions 1 & 2
Lens Material
Polycarbonate
Color Rendering Index
80
Emergency Battery Backup
No
Lighting Certification
DLC
Dimmable
No
Mounting Style
Suspended
Temperature Code
T3C, T4
Min. Ambient Temp.
-22 Degrees F
Max. Ambient Temp.
113 Degrees F
Ingress Protection Rating
IP66, IP69K, NEMA 4X, NEMA 5
UL/CSA/ETL Listed
UL Listed
Mounting Location
Pendant
BAA Compliant
Yes
Lumens per Watt
124 lm/W
CA Title 24 Compliant
Yes
Number of Bulbs
0
For Bulb Type
Integrated LED
Lumen Selectable
Not Selectable
Light Color
Daylight
Light Distribution Shape
7X7
Lens Shape
Flat
Ambient Temperature - Maximum
122 Degrees F
Mounting Hardware Type
3/4 in Connector Hub
Sensor Type
No Sensor
Includes
3/4 in Connector Hub
Lens Type
Frosted
IP Rating
IP66, IP69K
Ambient Temperature - Minimum
-22 Degrees F
Light Output
11,200 lm
Color Selectable
Not Selectable
Voltage
120/277V AC
Housing Material
Thermally Conductive Polymer
Bulb Included
Integrated LED
Dimming Method
No Dimming
Hazardous Location Rating
Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group F, G, Class III, Div 1 and 2
Linkable Up To
Unlinkable
NEMA Enclosure Rating
4X, 5
For Use With
Haz
Housing Color
Black
Linkable
No
Maximum Fixture Wattage
90 W

Description

1 ft, Lens Shape Flat, 5000K, 11,200 lm, 124 lm/W, Max. Fixture Wattage 90 W, Sensor Type No Sensor, Mounting Style Suspended, Linkable No, For Bulb Type Integrated LED, LED Replacement For Not Applicable, Bulb Included Integrated LED, Dimmable No, Incoplas LED Hybrid HazLoc
