  6. 4" X 15/16" Non-Marking Monotech (Donut) Swivel Caster, No Brake, Loads Up To 150 lb

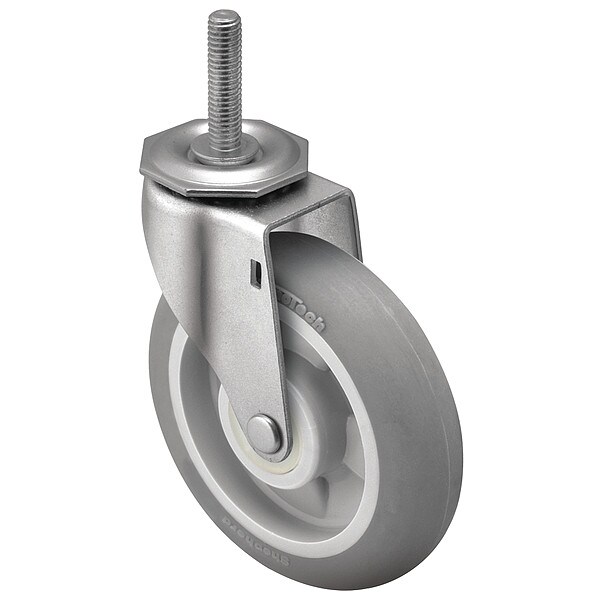

Shepherd Hardware 4" X 15/16" Non-Marking Monotech (Donut) Swivel Caster, No Brake, Loads Up To 150 lb PRE40748ZN-MNT - main

4" X 15/16" Non-Marking Monotech (Donut) Swivel Caster, No Brake, Loads Up To 150 lb

  • Mfr # PRE40748ZN-MNT

  • Zoro # G7808808

product price:  $16.79
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Wheel Dia.
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PRE40748ZN-MNT
Zoro #
G7808808
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
4 in
Wheel Width
1 in
Mounting Height
4-3/4 in
Overall Height
4 3/4 in
Stem Dia.
1/2 in
Caster Thread Size
1/2in-13
Stem Length
1-1/2 in
Tire Thickness
1/4 in
Caster Stem Size
1/2"-13 x 1 1/2 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Load Rating
150 lb
Caster Mounting Type
Stem
Wheel Bearing Type
Plain
Wheel/Tread Color
Grey
Wheel Hardness Rating
65 Shore A
Number of Mounting Holes
0
Tread Shape
Donut
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Frame Finish
Zinc Plated
Operating Temperature Range
-45 to 180 Degrees F
Wheel Type
Tread on Core
Swivel Raceway Type
Double Ball
Swivel Lock Type
No Lock Included
Series
Regent
Application
Store Fixtures, Carts, Institutional Equipment, Food Service Equipment, Furniture, Janitorial Equipment, Office Equipment, Racks and Storage Equipment, Medical Equipment
Load Rating Range
0 to 299 lb
Caster Stem Type
Threaded
Features
Octagon Washer for Easy Installation, High Strength, Durability, Ultimate Floor Protection, Cushioned Ride, Easier Rollability and Maneuverability
Standards
NSF Approved, RoHS Compliant
Wheel/Tread Hardness Rating
Soft
Swivel Bearing Seal Type
Open
NSF Listed
No
Includes Thread Guards
No
Wheel Core Material
Polypropylene
Swivel Construction
Swivel
Wheel Core Type
Solid
Caster Features
Debris-Resistant, Quiet-Roll, Shock-Absorbing
Load Capacity - Maximum
150 lb
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-45 Degrees F
For Surface Type
Asphalt, Ceramic, Metal Scrap, Rubber, Steel, Tile, Vinyl, Wood

Description

Stem Caster, Swivel Caster, 150 lb Load Rating, 0 to 299 lb, 4 in Wheel Dia., 1 in Wheel Width, Rubber Wheel/Tread Material, 4 3/4 in Mounting Height, Plain, 1/2 In.-13 x 1 1/2 in Caster Stem Size, Threaded, Steel Caster Frame Material, Zinc Plated Frame Finish, Yes Non-Marking, 1 Number of Wheels
