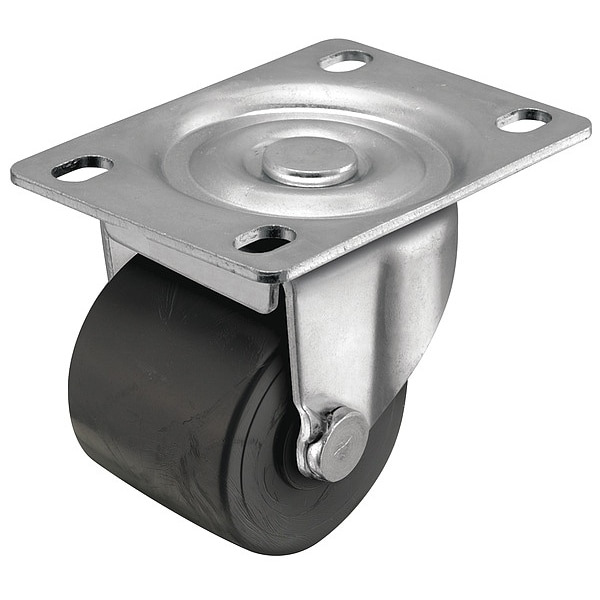

Shepherd Hardware 90 Series Floor Lock C0014120TZ-POL01(KK) - main

90 Series Floor Lock

  • Mfr # C0014120TZ-POL01(KK)

  • Zoro # G7812807

product price: $8.45
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyolefin
Caster Brake Type
No Brake
Wheel Dia.
1 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
C0014120TZ-POL01(KK)
Zoro #
G7812807
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
1 1/2 in
Wheel Width
1 3/4 in
Mounting Height
2-7/32 in
Mounting Plate Size
2 5/8 in x 3 3/4 in
Mounting Plate Thickness
5/32 in
Mounting Bolt Dia.
5/16 in
Swivel Radius
1 3/4 in
Outside Slot Spacing - Length
3 in
Outside Slot Spacing - Width
1.75 in
Mounting Plate Length
3 3/4 in
Mounting Plate Width
2 5/8 in
For Axle Dia.
5/16 in
Inside Slot Spacing - Width
1.75 in
Inside Slot Spacing - Length
2.75 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyolefin
Caster Brake Type
No Brake
Load Rating
150 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel/Tread Color
Black
Wheel Hardness Rating
70 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
1-3/4 in X 3 in
Inside Bolt Hole Spacing
1-3/4 in X 2-3/4 in
Caster Plate Hole Pattern
C
Swivel Raceway Type
Double Ball
Frame Color
Silver
Standards
RoHS Compliant, NSF Listed
Swivel Lock Type
No Lock Included
Application
Electronic Equipment, Business Machines, Store Fixtures, Laboratory Equipment, Vending Machines, Dolly Solutions, Refrigeration Units
Series
00 Series
Wheel Core Material
Polyolefin
NSF Listed
No
Frame Finish
Zinc Plated
Includes Thread Guards
No
Operating Temperature Range
-20 to 180 Degrees F
ESD Conductive
No
Caster Stem Type
Top Plate
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel, Tile, Wood
Load Rating Range
0 to 299 lb
Wheel Core Type
Solid
Features
Industry Leading Selection and Overall Value, Sleek, Low Profile Design, Up To 300 lb Capacity per Caster, Dual Ball Bearing Raceways for Smooth and Dependable Swivel
Swivel Construction
Swivel
Wheel/Tread Hardness Rating
Hard
Swivel Bearing Seal Type
Open
Load Capacity - Maximum
150 lb
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
Caster Features
Low Profile

Description

Swivel, Plate Caster, Load Rating 150 lb, Swivel Lock Type No Lock Included, Wheel Dia. 1 1/2 in, Wheel Width 1 3/4 in, Wheel/Tread Material Polyolefin, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
