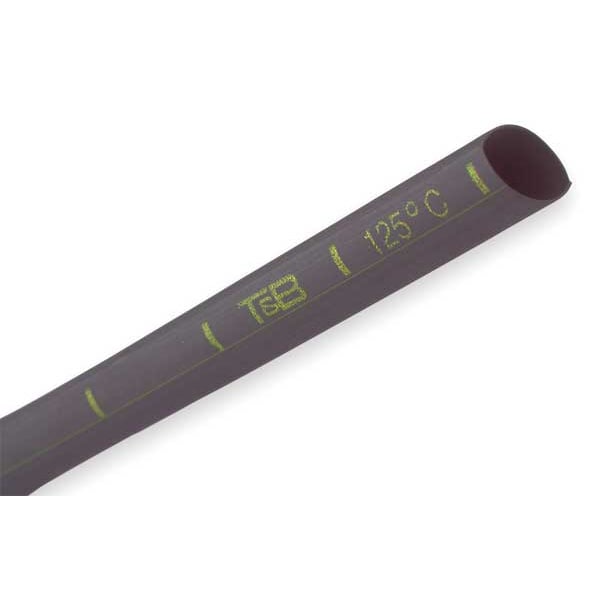

Heat Shrink Tube, Thin Wall, 2:1 I.D. Shrink Ratio, 0.38 in I.D. Before Shrinking, Black, 6 in
Mfr # CPO37506
Zoro # G3497401
product price:Â
$
8.59
/pk of 20, $0.43/ea
Key Features
Shrink Ratio
2:1
Wall Type
Thin Wall
Shrink Tubing I.D. After Shrinking
0.19 in
Material
Cross-Linked Polyolefin
Color
Black
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- CPO37506
- Zoro #
- G3497401
- UPC #
- 786210851693
- Country of Origin
- China
- Item
- Heat Shrink Tube
- Shrink Ratio
- 2:1
- Wall Type
- Thin Wall
- Shrink Tubing I.D. After Shrinking
- 0.19 in
- Material
- Cross-Linked Polyolefin
- Color
- Black
- Temp. Range
- -55° to 135°F
- Min. Shrink Temp.
- 248°F
- Max. Voltage
- 600 V
- Shrink Tubing I.D. Before Shrinking
- 3/8 in
- Flame Retardant
- Yes
- Standards
- AMS-3636 and 3637, CSA 22.2 No. 198.1, 125 Degrees C, DEF STAN 59-97, Issue 3, Type 2a, MIL-DTL-23053/5 Class 1 and 2, UL 224, 125 Degrees C
- Features
- Flame Retardant
- Tubing Wall Type
- Thin Wall
- Adhesive Lined
- No
- Package Style
- Individual Pieces
- Max. Temp. Rating
- 135 Degrees F
- Dielectric Strength
- 600 V
- Min. Temp. Rating
- -55 Degrees F
- Nominal Recovered Wall (inches)
- 0.025
- I.D. Before Shrinking
- 0.38 in
- I.D. After Shrinking
- 0.19 in
Description
Heat Shrink Tubing, Thin Wall, Material Cross-Linked Polyolefin, Flame Retardant Yes, Adhesive Lined No, Shrink Ratio 2:1, Use With Wire Size 12 AWG to 8 AWG, I.D. Before Shrinking 0.38 in, I.D. After Shrinking 0.19 in, Wall Thickness After Shrinking 0.03 In., Length 6 in, Color Black, Temp. Range -55 Degrees to 135 Degrees F, Package Style Individual Pieces, Min. Shrink Temp. 248 Degrees F, Dielectric Strength 600 V, Max. Temp. Rating 135 Degrees F, Min. Temp. Rating -55 Degrees F
