  9. 1" MNPT SPDT Liquid Flow Switch 24VDC
Shop All Level Switches
Siemens

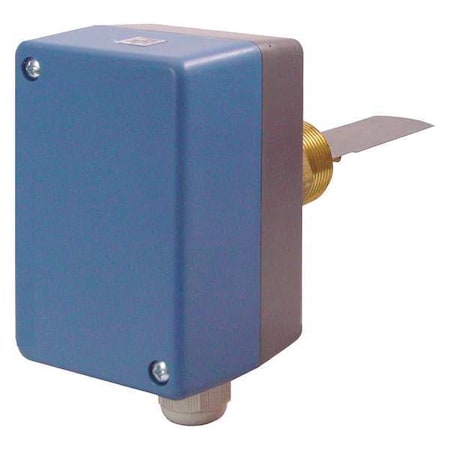

1" MNPT SPDT Liquid Flow Switch 24VDC

original price: $167.71
7% off
new price: $154.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Connection Size (In.) 1 MNPT
  • Switch Type SPDT
  • Voltage 24V DC
  • Max. Pressure 160 psi
  • Max. Fluid Temp. (F) -40 Degrees to 248 Degrees
See all product information

Product Information

Dimensions

Connection Size (In.) 1 MNPT
Max. Duct Size (In.) 1-1/4 in to 8 in
Overall Length 7.4 in
Overall Width 6.2 in
For Pipe Size 1 1/4 in, 8 in
Overall Height 2.8 in
Connection Size 1 in

Details

Switch Type SPDT
Voltage 24V DC
Max. Pressure 160 psi
Max. Fluid Temp. (F) -40 Degrees to 248 Degrees
Wetted Materials Brass
Min. Fluid Temp. (F) -40 Degrees F
Operating Velocity Range (FPM) 160
Flow Rate 10
Body Material Polycarbonate
Float Switch Contact Form SPDT
Max. Ambient Temp. (F) 185 Degrees F
Contact Rating 15A
Min. Ambient Temp. (F) -4 Degrees
Type Paddle
Max. Pressure (PSI) 160 psi
Max. Operating Velocity (FPM) 10 fpm
Switch Enclosure NEMA 4
Material of Construction Brass, Stainless Steel
For Use With Boilers and Heat Exchangers, Condensers
Min. Flow Rate (GPM) 6 gpm
Item Liquid Flow Switch
Application Used In HVAC Installations to Monitor The Flow of Fluids In Hydronic Heating and Cooling Systems
Phase Single
Standards DIN EN 60335-1:2010/VDE0700-1
Flow Rate - Minimum 6 gpm
Connection Type NPT
Contact Rating (DC) 15A (8A inductive) @ 24Vac
Ambient Temperature - Maximum 185 Degrees F
Wetted Material Brass
Switch Position Normally Closed
Flow Switch Type Paddle
Set Point Configuration Adjustable
Housing Material Stainless Steel
Flow Rate - Maximum 10 gpm
Media Temperature - Minimum -4 Degrees F
Contact Rating (AC) 15 A @ 24V
Media Temperature - Maximum 248 Degrees F

Description

Liquid Flow Switch, Ambient Temperature - Maximum 185 Degrees F, Connection Size 1 in, Connection Type NPT, Contact Rating (AC) 15 A @ 24V, Contact Rating (DC) 15A (8A inductive) @ 24Vac, Flow Rate - Maximum 10 gpm, Flow Rate - Minimum 6 gpm, Flow Switch Type Paddle, For Pipe Size 1 1/4 in, 8 in, Housing Material Stainless Steel, Media Temperature - Maximum 248 Degrees F, Media Temperature - Minimum -4 Degrees F, Overall Height 2.8 in, Overall Length 7.4 in, Overall Width 6.2 in, Phase Single

Restrictions
