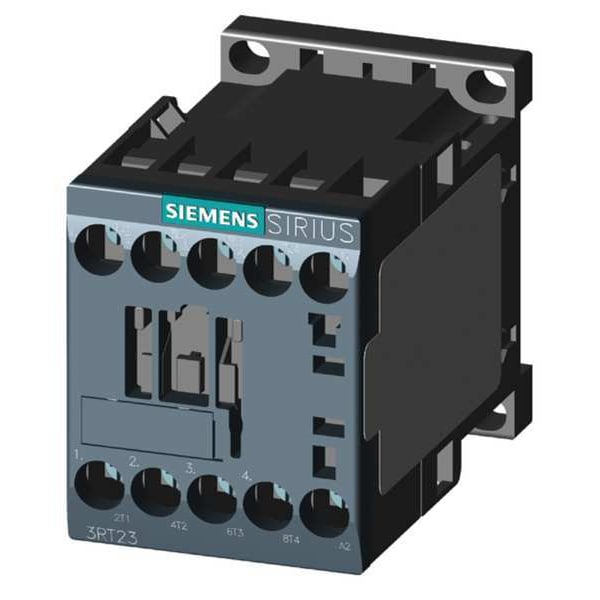

Siemens IEC Magnetic Contactor, 4NO, 24V AC, 4 P, Non-Reversing, Screw 3RT23171AB00 - main

IEC Magnetic Contactor, 4NO, 24V AC, 4 P, Non-Reversing, Screw

  • Mfr # 3RT23171AB00

  • Zoro # G6383151

product price:  $119.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
4NO
Coil Voltage
24V AC
Number of Poles
4
Full Load Amps-Inductive
12 A
Full Load Amps-Resistive
20 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
3RT23171AB00
Zoro #
G6383151
UPC #
662643917369
Country of Origin
Germany

Dimensions

Overall Width
1.97 in
Mounting Hole Distance - Width
1.38 in
Frame Size
S00
Overall Height
3.08 in
Mounting Hole Distance - Height
1.97 in
Mounting Hole Diameter
0.2 in
Overall Depth
2.45 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
4NO
Coil Voltage
24V AC
Number of Poles
4
Full Load Amps-Inductive
12 A
Full Load Amps-Resistive
20 A
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw
Number of Auxillary Contacts
4
Standards
REACH Art 33, WEEE (2012/19/EU)
Reversing
No
Frame / Series / Class / Code
S00
HP @ 1 Phase - 230V
1
Includes
S00 Frame
HP @ 3 Phase - 575V
7 1/2 hp
Enclosure NEMA Rating
No Enclosure
Series
SIRIUS 3RT23
IP Rating
IP20
Watts Loss
1.6W
Max. Operating Watts
4 kW (at 400V, AC-4), 6 kW (at 400V, AC-3)
Full Load Current - Resistive
20 A
Frequency
50/60 Hz
Horsepower @ Single Phase - 120V AC
1/3 hp
Contactor Style
IEC
Horsepower @ Three Phase - 480V AC
5 hp
Number of Normally Open Main Contacts
4
Mounting Style
DIN Rail, Surface
Mechanical Operating Durability
30,000,000
Full Load Current - Inductive
12:00 AM
Horsepower @ Single Phase - 240V AC
1 hp
Phase
3
Includes Auxiliary Contacts
Yes
Horsepower @ Three Phase - 600V AC
7 1/2 hp
Mounting Postion
Vertical
Maximum Operating Temperature
140 Degrees F
Minimum Operating Temperature
-13 Degrees F
Horsepower @ Three Phase - 240V AC
3 hp
Horsepower @ Three Phase - 208V AC
2 hp
Number of Normally Closed Main Contacts
0
NEMA Enclosure Rating
No Enclosure
Embedded Surge Suppressor
No

Description

The Siemens IEC Magnetic Contactor is a 4-pole, non-reversing control device with a 24 V AC coil. It uses an electromagnetic coil to open or close its main contacts and is built in the SIRIUS 3RT23 series with an S00 frame size. The unit includes four normally open auxiliary contacts (4NO) and is rated for IEC-style control with screw terminal connections compatible with DIN Rail or surface mounting.

Key features

  • Action: Non-Reversing
  • Poles: 4
  • Main contacts: 4 normally open; Normally closed main contacts: 0
  • Auxiliary contacts: 4NO
  • Coil voltage: 24 V AC
  • Frame/Series: S00 / SIRIUS 3RT23
  • Contactor style: IEC
  • Electrical connection: Screws
  • Embedded surge suppressor: No
  • Enclosure: No Enclosure; IP rating: IP20
  • Phase: 3; Frequency: 50/60 Hz
  • Max operating watts: 4 kW (400V, AC-4); 6 kW (400V, AC-3)
  • Full load amps: Inductive 12 A; Resistive 20 A
  • Horsepower ratings: 1 hp (230V, 1-phase); 1/3 hp (120V, 1-phase); 2 hp (208V, 3-phase); 3 hp (240V, 3-phase); 5 hp (480V, 3-phase); 7.5 hp (575V, 3-phase)
  • Dimensions (approx.): Width 1.77 in; Height 3.08 in; Depth 2.45 in
  • Mounting: DIN Rail, Surface
  • Mounting hole diameter: 0.20 in; distance (height) 1.97 in; distance (width) 1.38 in
  • Includes: S00 Frame
  • NEMA rating: No Enclosure
  • Standards: REACH Art 33, WEEE (2012/19/EU)
  • Reversing: No
  • Number of auxiliary contacts: 4
