  13. IEC PowerContactor, Non-Reversing, 24VDC

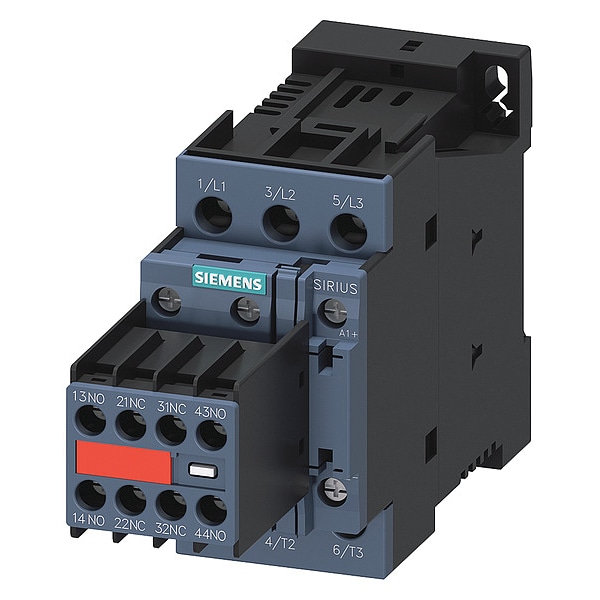

Siemens IEC PowerContactor, Non-Reversing, 24VDC 3RT20261FB443MA0 - main

IEC PowerContactor, Non-Reversing, 24VDC

  • Mfr # 3RT20261FB443MA0

  • Zoro # G8359846

product price: $325.99
/ea
Free Shipping & Returns

Key Features

Full Load Amps-Inductive
25 A
Full Load Amps-Resistive
40 A
Number of Poles
3
Coil Volts
24 V DC
HP @ 1 Phase - 120V
2 hp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3RT20261FB443MA0
Zoro #
G8359846
UPC #
662643913880
Country of Origin
Germany

Dimensions

Height
85 mm
Width
45 mm
Depth
151 mm
Mounting Hole Distance - Width
1.38 in
Mounting Hole Diameter
0.19 in
Overall Height
6.35 in
Overall Depth
3.6 in
Overall Width
2.2 in
Mounting Hole Distance - Height
2.36 in
Frame Size
S0

Details

Full Load Amps-Inductive
25 A
Item
IEC Power Contactor
Full Load Amps-Resistive
40 A
Number of Poles
3
Coil Volts
24 V DC
HP @ 1 Phase - 120V
2 hp
HP @ 1 Phase - 240V
3 hp
HP @ 3 Phase - 208V
5 hp
HP @ 3 Phase - 575V
20 hp
HP @ 3 Phase - 240V
7 1/2 hp
HP @ 3 Phase - 480V
15 hp
Auxiliary Contact Form
2NO/2NC
Series
SIRIUS 3RT Safety Contactors
Standards
REACH Art 33, WEEE (2012/19/EU)
Frame / Series / Class / Code
S0
Aux. Contact Configuration
2NO/2NC
Power loss, static, current-independent [Pls]
5.9 watt
suitable for series installation
Yes
Rated operating power with AC-3, 400 V
11 kilowatt
rated operational power AC-1 at 400 V
23 kilowatt
Number of making contacts and main contacts
3
Rated current [In] for the power loss specification
25 ampere
min. rated control voltage Us with DC
24 volt
Power loss per pole, current-dependent [PlIp]
1.9 watt
Rated operating current Ie with AC-3, 400 V
25 ampere
Connection type
Screw connection
Phase
Three
Full Load Current - Inductive
25 A
Horsepower @ Three Phase - 480V AC
15 hp
Number of Normally Open Main Contacts
3
Maximum Operating Temperature
140 Degrees F
Horsepower @ Single Phase - 120V AC
2 hp
NEMA Enclosure Rating
No Enclosure
Horsepower @ Single Phase - 240V AC
3 hp
Maximum Voltage Rating
690V AC
Minimum Operating Temperature
-13 Degrees F
Reversing Capability
Non-Reversing
Horsepower @ Three Phase - 240V AC
7 1/2 hp
Number of Auxillary Contacts
4
Terminal Connection Type
Screw Terminals
Coil Voltage
24V DC
Contactor Style
IEC
Embedded Surge Suppressor
Yes
Horsepower @ Three Phase - 600V AC
20 hp
Includes Auxiliary Contacts
Yes
IP Rating
IP20
Mounting Postion
Vertical
Mounting Style
DIN Rail, Surface
Full Load Current - Resistive
40 A
Response Time
10 to 17 msec (AC Operation Closing Delay Operation Opening Delay Operating Times for 1.0 x Us1), 15 to 17.5 msec (DC Operation Opening Delay Operating Times For 0.8 ... 1.1 X Us1), 16 to 17 msec (DC Operation Opening Delay Operating Times for 1.0 x Us), 4 to 16 msec (AC Operation Opening Delay Operating Times for 0.8 ... 1.1 X Us1), 4 to 16 msec (AC Operation Opening Delay Operating Times for 1.0 x Us), 50 to 170 msec (DC Operation Closing Delay Operating Times for 0.8 ... 1.1 X Us1), 55 to 80 msec (DC Operation Closing Delay Operating Times for 1.0 x Us), 8 to 40 msec (AC Operation Closing Delay)
Mechanical Operating Durability
10,000,000
Horsepower @ Three Phase - 208V AC
5 hp

Description

IEC Power Contactor, Auxiliary Contact Form 2NO/2NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 24V DC, Number of Poles 3, Full Load Current - Inductive 25 A, Full Load Current - Resistive 40 A, Reversing Capability Non-Reversing, Overall Height 6.35 in, Overall Width 2.2 in, Terminal Connection Type Screw Terminals, Frame Size S0, Mounting Style DIN Rail, Surface, Series SIRIUS 3RT Safety Contactors, Number of Auxillary Contacts 4, Contactor Style IEC
