  13. IECPowerContactor, Non-Reversing, 230VAC

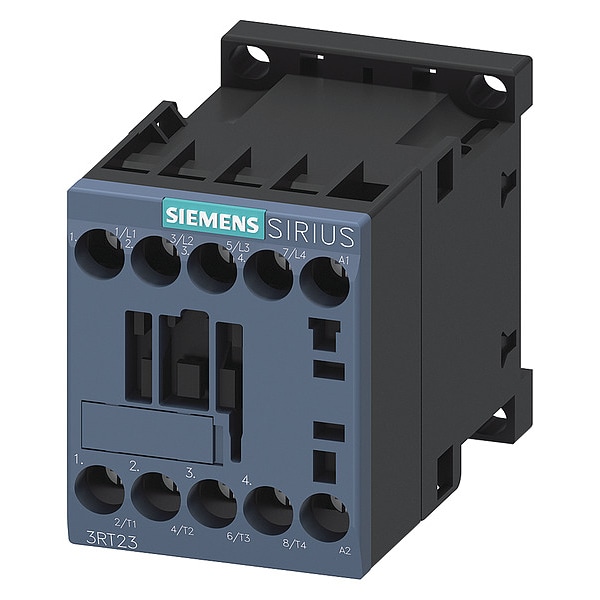

Siemens IECPowerContactor, Non-Reversing, 230VAC 3RT23161AP00 - main

IECPowerContactor, Non-Reversing, 230VAC

  • Mfr # 3RT23161AP00

  • Zoro # G8362752

product price: $96.29
/ea
Free Shipping & Returns

Key Features

Full Load Amps-Inductive
9 A
Full Load Amps-Resistive
18 A
Number of Poles
4
Coil Volts
230 V AC
Height
58 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3RT23161AP00
Zoro #
G8362752
UPC #
662643917253
Country of Origin
Germany

Dimensions

Height
58 mm
Width
45 mm
Depth
73 mm
Overall Depth
2.45 in
Overall Width
1.97 in
Mounting Hole Diameter
0.2 in
Frame Size
S00
Mounting Hole Distance - Height
1.97 in
Mounting Hole Distance - Width
1.38 in
Overall Height
3.08 in

Details

Full Load Amps-Inductive
9 A
Item
IEC Power Contactor
Full Load Amps-Resistive
18 A
Number of Poles
4
Coil Volts
230 V AC
Series
SIRIUS 3RT23
Aux. Contact Configuration
2NO/2NC
Frame / Series / Class / Code
S00
Hz
50/60
Auxiliary Contact Form
2NO/2NC
Standards
REACH Art 33, WEEE (2012/19/EU)
Rated current [In] for the power loss specification
9 ampere
Type of actuation
AC
Number of making contacts and main contacts
4
max. rated AC voltage for controls (60 Hz)
230 volt
Rated operating current Ie with AC-3, 400 V
9 ampere
Rated operating power with AC-3, 400 V
4 kilowatt
rated operating power (AC-4, 400 V)
4 kilowatt
Connection type
Screw connection
Max. rated AC voltage for controls, 50 Hz
230 volt
Power loss per pole, current-dependent [PlIp]
1.1 watt
suitable for series installation
Yes
Full Load Current - Resistive
18 A
Number of Normally Closed Main Contacts
0
Number of Auxillary Contacts
4
NEMA Enclosure Rating
No Enclosure
Mounting Style
DIN Rail, Surface
Number of Normally Open Main Contacts
4
Coil Voltage
230V AC
Minimum Operating Temperature
-13 Degrees F
IP Rating
IP20
Mounting Postion
Vertical
Maximum Operating Temperature
140 Degrees F
Mechanical Operating Durability
30,000,000
Includes Auxiliary Contacts
Yes
Contactor Style
IEC
Frequency
50/60 Hz
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Terminals
Full Load Current - Inductive
9 A
Embedded Surge Suppressor
No

Description

IEC Power Contactor, Auxiliary Contact Form 2NO/2NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 230V AC, Number of Poles 4, Full Load Current - Inductive 9 A, Full Load Current - Resistive 18 A, Reversing Capability Non-Reversing, Overall Height 3.08 in, Overall Width 1.97 in, Terminal Connection Type Screw Terminals, Frame Size S00, Mounting Style DIN Rail, Surface, Series SIRIUS 3RT23, Number of Auxillary Contacts 4, Contactor Style IEC
