Shop SCHNEIDER ELECTRIC

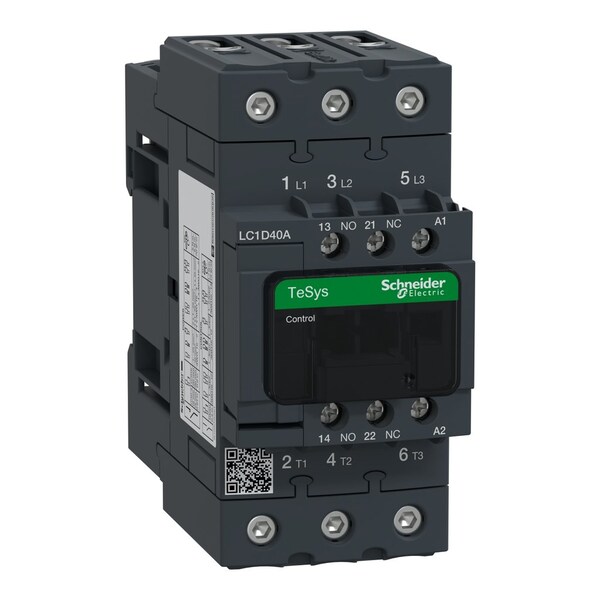

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 3 P, Non-Reversing, Screw Clamp

  • Mfr # LC1D40AB6

  • Zoro # G210070432

product price:
$
271.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V AC
Number of Poles
3
Full Load Amps-Inductive
150 A
Full Load Amps-Resistive
200 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LC1D40AB6
Zoro #
G210070432
UPC #
3606480638206
Country of Origin
France

Dimensions

Overall Width
2.17 in
Overall Depth
4.72 in
Overall Height
4.8 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V AC
Number of Poles
3
Full Load Amps-Inductive
150 A
Full Load Amps-Resistive
200 A
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
IP Rating
IP20
Series
TeSys Deca
Horsepower @ Three Phase - 240V AC
10 hp
Horsepower @ Three Phase - 600V AC
30 hp
Horsepower @ Three Phase - 480V AC
30 hp
Horsepower @ Single Phase - 240V AC
5 hp
Phase
Three
Full Load Current - Inductive
40 A
Resistance Properties
Fire Resistant, Insulation Resistant
Frequency
60 Hz
Electrical Operating Durability
1,400,000 (AC-1), 1,500,000 (AC-3), 1,500,000 (AC-3e)
Includes Auxiliary Contacts
Yes
Embedded Surge Suppressor
No
Horsepower @ Single Phase - 120V AC
3 hp
Full Load Current - Resistive
200 A
Horsepower @ Three Phase - 208V AC
10 hp
Mechanical Operating Durability
6,000,000
Maximum Voltage Rating
690V AC
Contactor Style
IEC
Mounting Style
DIN Rail, Plate

Description

The Schneider Electric IEC Magnetic Contactor is a three-pole, non-reversing electromagnetic switch rated for use in IEC-standard control panels. Rated for operation with a 24V AC coil; auxiliary contacts are configured as 1NC/1NO. The device uses screw clamp terminals and is part of the TeSys Deca series, rated for operation within the specified voltage range up to 690V AC; conforms to IP20 ingress protection standards; compatible with DIN rail or plate mounting methods within standard installation practices. It is specified for three-phase systems and mechanical durability up to 6,000,000 cycles; electrical durability ratings up to 1,400,000 (AC-1), 1,500,000 (AC-3/AC-3e) cycles.

Coil Voltage: 24V AC

  • Contactor Style: IEC
  • Item: IEC Magnetic Contactor
  • Number of Poles: 3
  • Phase: Three
  • Reversing Capability: Non-Reversing
  • Auxiliary Contacts: 2 (1NC/1NO)
  • Includes Auxiliary Contacts: Yes
  • Terminal Connection Type: Screw Clamp
  • Voltage Rating: Up to 690V AC
  • Ingress Protection: IP20 (conforms to IP20 ingress protection standards)
  • Mounting: Compatible with DIN rail or plate mounting methods within standard installation practices
  • Mechanical Durability: Up to 6,000,000 cycles
  • Electrical Durability: Up to 1,400,000 (AC-1); 1,500,000 (AC-3/AC-3e) cycles
  • Frequency: 60 Hz
  • Full Load Amps - Inductive: 150 A
  • Full Load Amps - Resistive: 200 A
  • Full Load Current - Inductive: 40 A
  • Full Load Current - Resistive: 200 A
  • Horsepower (Single-Phase 120V AC): Rated horsepower at specified voltages and phases per manufacturer specifications
  • Horsepower (Single-Phase 240V AC): Rated horsepower at specified voltages and phases per manufacturer specifications
  • Horsepower (Three-Phase 208V AC): Rated horsepower at specified voltages and phases per manufacturer specifications
  • Horsepower (Three-Phase 240V AC): Rated horsepower at specified voltages and phases per manufacturer specifications
  • Horsepower (Three-Phase 480V AC): Rated horsepower at specified voltages and phases per manufacturer specifications
  • Horsepower (Three-Phase 600V AC): Rated horsepower at specified voltages and phases per manufacturer specifications
  • Overall Depth: 4.72 in
  • Overall Height: 4.8 in
  • Overall Width: 2.17 in
  • Series: TeSys Deca
  • Standards: CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
  • Resistance Properties: Fire Resistant, Insulation Resistant
