  15. Illuminated Push Button, Green, 22mm, LED

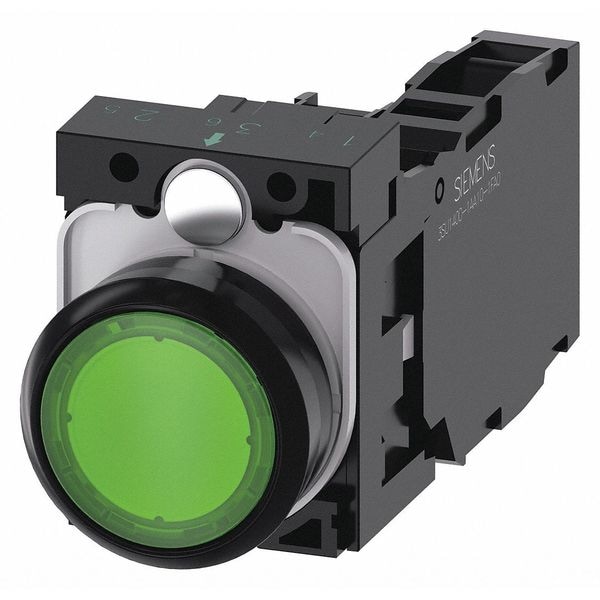

Siemens Illuminated Push Button, Green, 22mm, LED 3SU1103-0AB40-1FA0 - main

Illuminated Push Button, Green, 22mm, LED

  • Mfr # 3SU1103-0AB40-1FA0

  • Zoro # G3040928

product price: $46.29
/ea

Key Features

Voltage
120V AC
Color
Green
Head Material
Plastic
Lamp Module Type
Full Voltage
Standards
CAS, REACH, WEEE (2012/19/EU)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3SU1103-0AB40-1FA0
Zoro #
G3040928
UPC #
804766359118
Country of Origin
Germany

Dimensions

Size
22 mm
Panel Cutout Diameter
22 mm
Overall Width
2 in
Manufacturer Warranty Length
1 yr
Overall Height
1.9 in
Overall Depth
4 in

Details

Item
Illuminated Push Button
Voltage
120V AC
Color
Green
Head Material
Plastic
Lamp Module Type
Full Voltage
Standards
CAS, REACH, WEEE (2012/19/EU)
Type of Operator
Flush Button
Lamp Module Voltage
120V AC
Lamp Type
LED
Terminal Connection
Screw
Basic Material
Plastic
Contact Form
1NO/1NC
Contact Type
1NO/1NC
NEMA Rating
1, 12, 2, 3, 3R, 4, 4X
Number of Operators
1
Bezel
Plastic
Action
Momentary
Replacement Lamp
Not Replaceable
Lamp Voltage
120V AC
Contact Rating
10A @ 600V AC, 5A @ 600V DC
NEMA Contact Rating Designation
A600/R300
IP Rating
IP66, IP67, IP69, IP69K
Features
Possible to Select 1 to 4 Positions with ID Keys, Four ID Keys with Different Codes
Product Type
Push Button Operators
Application
Complete unit
Bezel Material
Plastic
Type
Illuminated pushbuttons
Operating cycles
3000000
Operating Temperature
-25°C to 70°C
Contact configuration
36526
Connection
screw-type terminals
Environmental Conditions
-25
Insulation
IP66, IP67, IP69(IP69K)
Indicator
Light source
Special Features
Yes
Voltage rating
5
Actuator
Button, flat
Number of Poles
1
Mounting
front plate mounting
AC Contact Rating
10 A @ 600 V
Operating Temperature - Minimum
-13 Degrees F
Operator Illumination
Illuminated
Mechanical Operating Durability
3.00 x 10^6
Number of Indicator Lights
0
Operator Material
Plastic
Operator Voltage Rating - Maximum
500 V
Operating Temperature - Maximum
158 Degrees F
Series
3SU
DC Contact Rating
5 A @ 600 V
NEMA Enclosure Rating
1, 12, 2, 3, 3R, 4, 4X
Push Button Style
Flush
Head Color
Green
Lamp Voltage - Maximum
120 V AC

Description

Illuminated Push Button, 22 mm, Momentary Action, Flush Button Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Bezel Plastic, Color Green, Contact Rating 10A @ 600V AC, 5A @ 600V DC, NEMA Contact Rating Designation A600/R300, Number of Operators 1, NEMA Rating 1, 12, 2, 3, 3R, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Legend Not Applicable, Standards CAS, REACH, WEEE (2012/19/EU), Terminal Connection Screw
