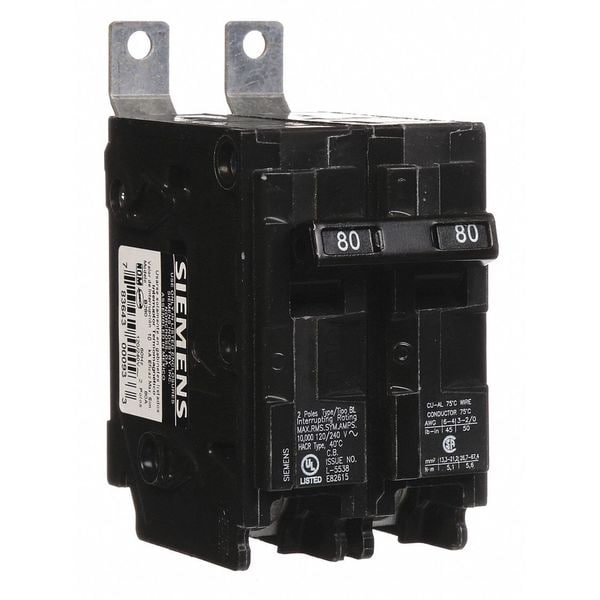

Miniature Circuit Breaker, BL Series, 80A, 2 Pole, 120/240V AC, 10kA at 120/240V AC
Mfr # B280
Zoro # G1745161
product price:Â $298.99
/ea
Free Shipping & Returns
Key Features
Series
BL
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
Phase
1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- B280
- Zoro #
- G1745161
- UPC #
- 783643000933
- Country of Origin
- Mexico
Dimensions
- Frame Size
- 125A/BL
- Width
- 3 in
- Depth
- 4 in
- Height
- 2 in
- Max. Wire Size
- 1/0 AWG
- Min. Wire Size
- 2 AWG (Al), 4 AWG (Cu)
- Length
- 2 in
Details
- Item
- Miniature Circuit Breaker
- Series
- BL
- Amps
- 80A
- Number of Poles
- 2
- AC Voltage Rating
- 120/240V AC
- Circuit Breaker Type
- Standard
- Phase
- 1
- Circuit Breaker Actuator
- Toggle
- Circuit Breaker Mounting Style
- Bolt On
- Max. AIR Rating
- 10kA at 120/240V AC
- Terminal Connection
- Lugs
- DC Voltage Rating
- Not Rated
- Standards
- CSA, HACR, UL
- For Use With
- Siemens P1 Panelboards
- Application
- Electrical Distribution
- Compatible Panelboard/Load Center Series
- P1
- Voltage
- 120/240VAC
Description
Miniature Circuit Breaker, Amps 80 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Standard, Number of Poles 2, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series P1, Phase Single, Series BL, Max. AIR Rating 10kA at 120/240V AC, For Use With Siemens P1 Panelboards, Terminal Connection Lug, Frame Size 125A/BL, Length 2 in, Width 3 in, Depth 4 in, Min. Wire Size 2 AWG (Al), 4 AWG (Cu)
