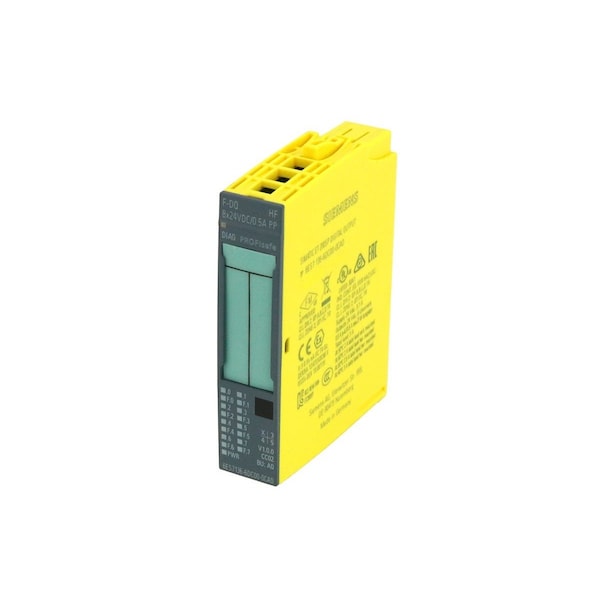

Siemens Module 6ES7136-6DC00-0CA0 - main

Module

  • Mfr # 6ES7136-6DC00-0CA0

  • Zoro # G909016659

product price:  $698.99
/ea
Free Shipping & Returns

Key Features

Height
73 millimetre
Width
15 millimetre
Depth
58 millimetre
wall mounting/direct mounting possible
No
Number of HW interfaces Wireless
0
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
6ES7136-6DC00-0CA0
Zoro #
G909016659
UPC #
-
Country of Origin
Germany

Dimensions

Height
73 millimetre
Width
15 millimetre
Depth
58 millimetre

Details

wall mounting/direct mounting possible
No
Number of HW interfaces Wireless
0
min. supply voltage with DC
20 volt
max. supply voltage with DC
28.8 volt
Supply voltage type
DC
Bearing track assembly possible
Yes
Number of HW interfaces parallel
0
Performance level acc. to EN ISO 13849-1
E
Explosion protection categories for gases
ATEX gas-ex-protection, Cat. 3
min. permissible voltage at output
19 volt
Manufacturer product family
ET 200SP
Number of HW interfaces serial RS232
0
Number of outputs, digital
8
digital outputs, configurable
Yes
description of product type
F-DQ 8x24 V DC/0.5 A PP HF
Corresponding operating medium (Ex ib)
No
Corresponding operating medium (Ex ia)
No
Number of HW interfaces serial RS485
0
Power loss, static, current-independent [Pls]
3 watt
Number of HW interfaces Industrial Ethernet
0
Protection type IP
IP20
Optical interface present
No
Number of HW interfaces serial RS422
0
Number of outputs
8
Max. perm. voltage
29 volt
Number of inputs
0
System components present
Yes
Rack-assembly possible
No
Design of digital output
Transistor
Manufacturer product root
Digital module output
Output current
1 ampere
Output voltage type
DC
Front installation possible
No
Functional safety (SIL)
SIL 3
Number of inputs, digital
0
Number of HW interfaces, other
0
Short circuit protection, outputs present
Yes
Number of HW interfaces PROFINET
0
Field bus connection possible via separate bus couplers
Yes
Number of HW interfaces serial TTY
0

Description

SIMATIC DP, Electronics ET 200SP, F-DQ 8XDC 24V0.5A PP, 15 mm width, up to PL E ISO 13849 up to SIL 3 IEC 61508
