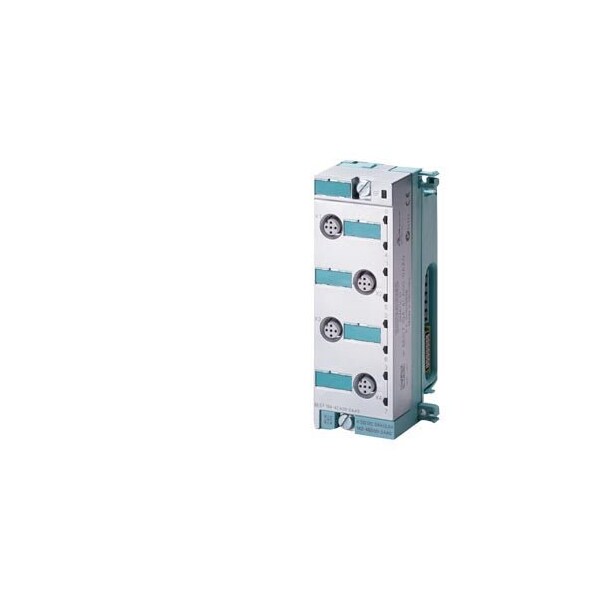

Siemens Module 6ES7145-4FF00-0AB0 - main

Module

  • Mfr # 6ES7145-4FF00-0AB0

  • Zoro # G609016454

product price: $592.99
/ea
Free Shipping & Returns

Key Features

Depth
35 millimetre
Height
130 millimetre
Width
45 millimetre
Manufacturer product family
ET 200pro
Number of HW interfaces Wireless
0
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6ES7145-4FF00-0AB0
Zoro #
G609016454
UPC #
-
Country of Origin
Germany

Dimensions

Depth
35 millimetre
Height
130 millimetre
Width
45 millimetre

Details

Manufacturer product family
ET 200pro
Number of HW interfaces Wireless
0
Number of HW interfaces serial RS485
0
Number of HW interfaces parallel
0
Output, voltage present
Yes
Number of HW interfaces, other
0
Number of HW interfaces serial RS422
0
Corresponding operating medium (Ex ia)
No
description of product type
4AQ U HF
Field bus connection possible via separate bus couplers
Yes
Number of analog inputs
0
Number of analog outputs
4
Front installation possible
Yes
analog outputs, configurable
Yes
Bearing track assembly possible
Yes
max. supply voltage with DC
28.8 volt
Design of electrical connection
Connector M12
Output, current present
No
Number of HW interfaces Industrial Ethernet
0
Corresponding operating medium (Ex ib)
No
Number of HW interfaces serial TTY
0
Number of HW interfaces serial RS232
0
Supply voltage type
DC
min. supply voltage with DC
20 volt
Rack-assembly possible
No
Protection type IP
IP67
Manufacturer product root
Analog module output
Number of HW interfaces PROFINET
0
Power loss, static, current-independent [Pls]
2 watt
System components present
Yes
Resolution of the analog outputs
15 bit
wall mounting/direct mounting possible
Yes
Output signal can be configured
Yes

Description

SIMATIC DP, Electronic modules for ET 200 PRO 4 AO U High Feature, +-10 V, 0...10V, 1...5V, Channel diagnostics, incl. bus , Connection IO 6ES7194-4..00-0AA0 order separately
