Shop SIEMENS

Module

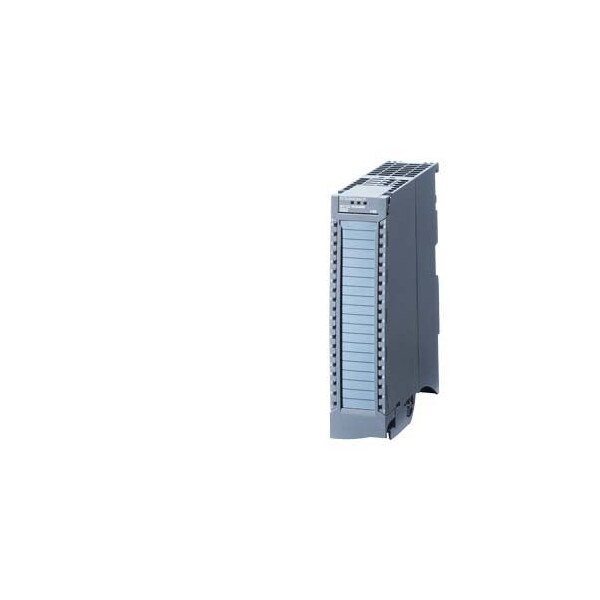

  • Mfr # 6ES7522-1BF00-0AB0
  • Zoro # G209016618
product price:
$
470.99
/ea
Free Shipping & Returns

Key Features

Width
35 mm
Depth
129 millimetre
Height
147 millimetre
Short circuit protection, outputs present
Yes
Max. perm. voltage
29 volt
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6ES7522-1BF00-0AB0
Zoro #
G209016618
UPC #
-
Country of Origin
Germany

Dimensions

Width
35 mm
Depth
129 millimetre
Height
147 millimetre

Details

Short circuit protection, outputs present
Yes
Max. perm. voltage
29 volt
Supply voltage type
DC
Redundancy-compatible present
Yes
Max. delay time with change of signal
1 millisecond
Manufacturer product root
Digital module output
Min. delay time with change of signal
0 millisecond
Corresponding operating medium (Ex ia)
No
Number of outputs
8
Number of inputs
0
Output voltage type
DC
min. permissible voltage at output
0 volt
Output current
2 ampere
description of product type
DQ 8x24VDC/2A HF
Design of digital output
Transistor
Corresponding operating medium (Ex ib)
No
Explosion protection categories for gases
ATEX gas-ex-protection, Cat. 3
Number of outputs, digital
8
Number of inputs, digital
0
Manufacturer product family
S7-1500
max. supply voltage with DC
28.8 volt
Power loss, static, current-independent [Pls]
6 watt
digital outputs, configurable
Yes
min. supply voltage with DC
19 volt

Description

SIMATIC S7-1500, digital output DQ 8x24 V DC/2A HF, 8 channels in groups of 8, 8 A per group, diagnostics, substitute value: 2 channels can be used for pulse width modulationPWM. the supports the safety-oriented shutdown of load groups up to SIL2 according to EN IEC 62061:2021 and Category 3 / PL d according to EN ISO 13849-1:2015. front connector screw terminals or push-in to be ordered separately
