Shop SIEMENS

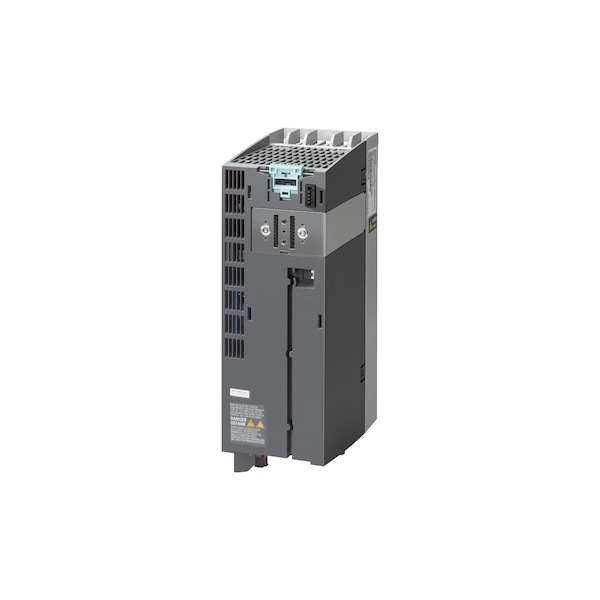

Module

  • Mfr # 6SL3210-1PE21-1UL0

  • Zoro # G609016720

product price:
$
1,328.99
/ea
Free Shipping & Returns

Key Features

Height
292 millimetre
Depth
165 millimetre
Width
100 millimetre
Rated output voltage
400 volt
Rated output current
10.2 ampere
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6SL3210-1PE21-1UL0
Zoro #
G609016720
UPC #
-
Country of Origin
Germany

Dimensions

Height
292 millimetre
Depth
165 millimetre
Width
100 millimetre

Details

Rated output voltage
400 volt
Rated output current
10.2 ampere
Max. output frequency
550 hertz
Input phase number
3
max. output power with linear load and rated output voltage
3 kilowatt
max. mains voltage
480 volt
Output phases, number of
3
Design of frequency changer
U converter
Protection type IP
IP20
Brake chopper integrated
Yes
max. output power with square load at rated output voltage
4 kilowatt
Use in the industrial area permissible
No
Relative symmetric mains frequency tolerance
5 percent
description of product type
PM240-2
Min. network voltage
380 volt
Relative symmetric mains voltage tolerance
10 percent
Power loss, static, current-independent [Pls]
15 watt

Description

SINAMICS POWER PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 3KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -10 TO +50 DEG C OUTPUT LOW OVERLOAD: 4KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -10 TO +40 DEG C 291 X 100 X 165 HXWXD, FSB PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.6
