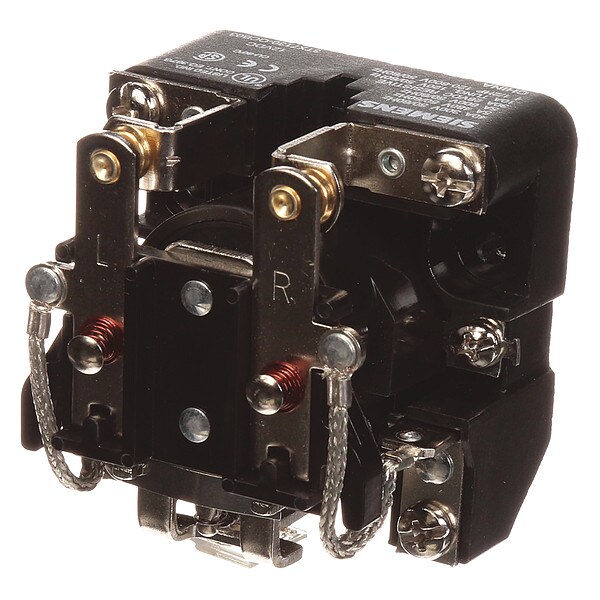

Open Power Relay, 12V DC, DPST-NO, Pins
Mfr # 3TX7130-0CB03
Zoro # G8523892
product price:Â
$
103.99
/ea
Free Shipping & Returns
Key Features
Mounting Style
Surface
Coil Voltage
12V DC
Current Rating
40 A
Contact Form
DPST-NO
Contact Rating (DC)
40 A @ 12V
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 3TX7130-0CB03
- Zoro #
- G8523892
- UPC #
- 754554762449
- Country of Origin
- China
- Item
- Open Power Relay
- Mounting Style
- Surface
- Coil Voltage
- 12V DC
- Current Rating
- 40 A
- Contact Form
- DPST-NO
- Contact Rating (DC)
- 40 A @ 12V
- Standards
- REACH Art. 33, RoHS Compliant
- Features
- Heavy Duty
- Contact Material
- Silver Alloy
- Power Consumption - Relay
- 4.0 W, 10.0 VA
- Series
- 3TX71 Series
- Maximum Operating Temperature
- 158 Degrees F
- Input Voltage
- 12V DC
- Power Consumption
- 4 W, 10 VA
- Electrical Operating Durability
- 100,000
- Response Time
- 30 msec
- Minimum Operating Temperature
- -40 Degrees F
- Weight
- 11.01 oz
- Horsepower @ 120V AC
- 1/3 hp
- Maximum Switching Voltage
- 600V AC
- Motor Rated
- Yes
- Dielectric Strength
- 1,500 Vrms Between Contacts, 2,200 Vrms Between Coil and Contact, 2,200 Vrms Between Poles
- Mechanical Operating Durability
- 1,000,000
- Status Indicator
- No Indicator
Description
Open Power Relay, Coil Voltage 12V DC, Contact Form DPST-NO, Current Rating 40 A, Status Indicator No Indicator, Contact Rating (DC) 40 A @ 12V, Horsepower @ 120V AC 1/3 hp, Mounting Style Surface, Body Depth 2.43 in, Contact Material Silver Alloy, Dielectric Strength 1,500 Vrms Between Contacts, 2,200 Vrms Between Coil and Contact, 2,200 Vrms Between Poles, Electrical Operating Durability 100,000, Features Heavy Duty, Input Voltage 12V DC
