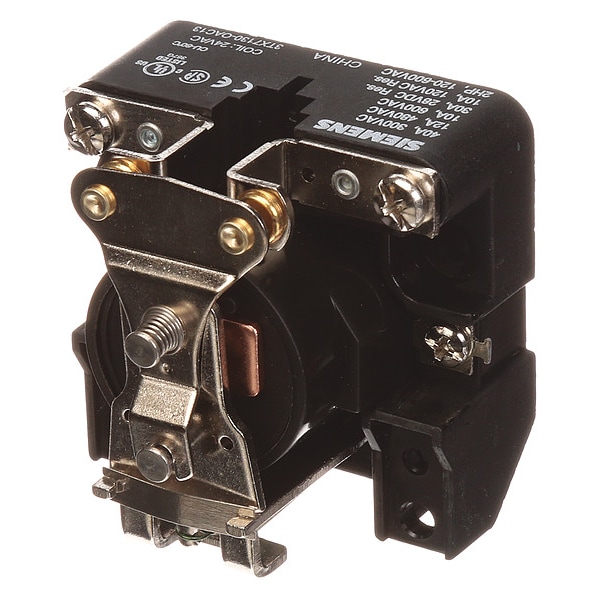

Open Power Relay, 24V AC, SPST-NO, Pins
Mfr # 3TX7130-0AC13
Zoro # G8524285
product price:Â $74.79
/eaKey Features
Mounting Style
Surface
Coil Voltage
24V AC
Current Rating
40 A
Contact Form
SPST-NO
Contact Rating (AC)
40 A @ 24V
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 3TX7130-0AC13
- Zoro #
- G8524285
- UPC #
- 754554762173
- Country of Origin
- China
Details
- Item
- Open Power Relay
- Mounting Style
- Surface
- Coil Voltage
- 24V AC
- Current Rating
- 40 A
- Contact Form
- SPST-NO
- Contact Rating (AC)
- 40 A @ 24V
- Standards
- REACH Art. 33, RoHS Compliant
- Features
- Heavy Duty
- Power Consumption - Relay
- 4.0 W, 10.0 VA
- Contact Material
- Silver Alloy
- Maximum Operating Temperature
- 158 Degrees F
- Horsepower @ 120V AC
- 1/3 hp
- Motor Rated
- Yes
- Dielectric Strength
- 1,500 Vrms Between Contacts, 2,200 Vrms Between Coil and Contact, 2,200 Vrms Between Poles
- Series
- 3TX71 Series
- Input Voltage
- 24V AC
- Response Time
- 30 msec
- Mechanical Operating Durability
- 1,000,000
- Power Consumption
- 4 W, 10 VA
- Electrical Operating Durability
- 100,000
- Minimum Operating Temperature
- -40 Degrees F
- Weight
- 11.01 oz
- Maximum Switching Voltage
- 600V AC
- Status Indicator
- No Indicator
Description
Open Power Relay, Coil Voltage 24V AC, Contact Form SPST-NO, Current Rating 40 A, Status Indicator No Indicator, Contact Rating (AC) 40 A @ 24V, Horsepower @ 120V AC 1/3 hp, Mounting Style Surface, Contact Material Silver Alloy, Dielectric Strength 1,500 Vrms Between Contacts, 2,200 Vrms Between Coil and Contact, 2,200 Vrms Between Poles, Electrical Operating Durability 100,000, Features Heavy Duty, Input Voltage 24V AC
