Shop SIEMENS
See all product information

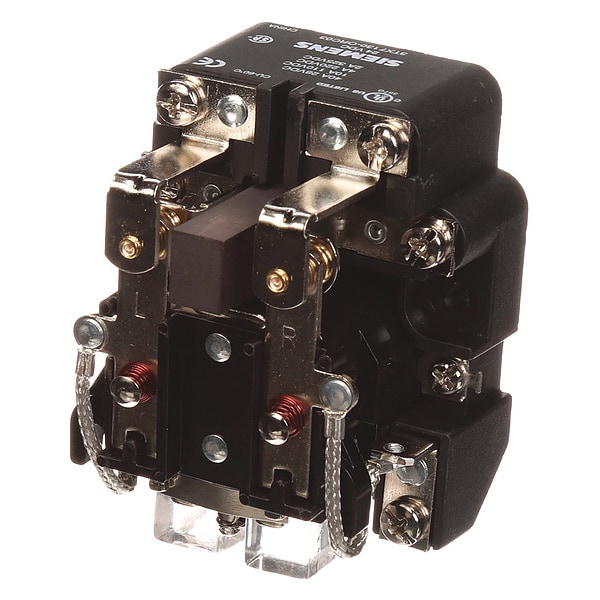

Open Power Relay, 24V DC, DPDT, Pins
Mfr # 3TX7130-0RC03
Zoro # G8523962
product price:Â $110.99
/ea
Free Shipping & Returns
Key Features
Mounting Style
Surface
Coil Voltage
24V DC
Current Rating
40 A
Contact Form
DPDT
Contact Rating (DC)
40 A @ 24V
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- 3TX7130-0RC03
- Zoro #
- G8523962
- UPC #
- 754554762531
- Country of Origin
- China
Details
- Item
- Open Power Relay
- Mounting Style
- Surface
- Coil Voltage
- 24V DC
- Current Rating
- 40 A
- Contact Form
- DPDT
- Contact Rating (DC)
- 40 A @ 24V
- Contact Material
- Silver Alloy
- Features
- Heavy Duty, Mag Blowout
- Standards
- REACH Art. 33, RoHS Compliant
- Power Consumption - Relay
- 4.0 W, 10.0 VA
- Power Consumption
- 4 W, 10 VA
- Maximum Switching Voltage
- 600V AC
- Dielectric Strength
- 1,500 Vrms Between Contacts, 2,200 Vrms Between Coil and Contact, 2,200 Vrms Between Poles
- Motor Rated
- Yes
- Maximum Operating Temperature
- 158 Degrees F
- Mechanical Operating Durability
- 1,000,000
- Input Voltage
- 24V DC
- Minimum Operating Temperature
- -40 Degrees F
- Series
- 3TX71 Series
- Horsepower @ 120V AC
- 1/3 hp
- Electrical Operating Durability
- 100,000
- Response Time
- 30 msec
- Weight
- 11.01 oz
- Status Indicator
- No Indicator
Description
Open Power Relay, Coil Voltage 24V DC, Contact Form DPDT, Current Rating 40 A, Status Indicator No Indicator, Contact Rating (DC) 40 A @ 24V, Horsepower @ 120V AC 1/3 hp, Mounting Style Surface, Contact Material Silver Alloy, Dielectric Strength 1,500 Vrms Between Contacts, 2,200 Vrms Between Coil and Contact, 2,200 Vrms Between Poles, Electrical Operating Durability 100,000, Features Heavy Duty, Mag Blowout, Input Voltage 24V DC
