Siemens

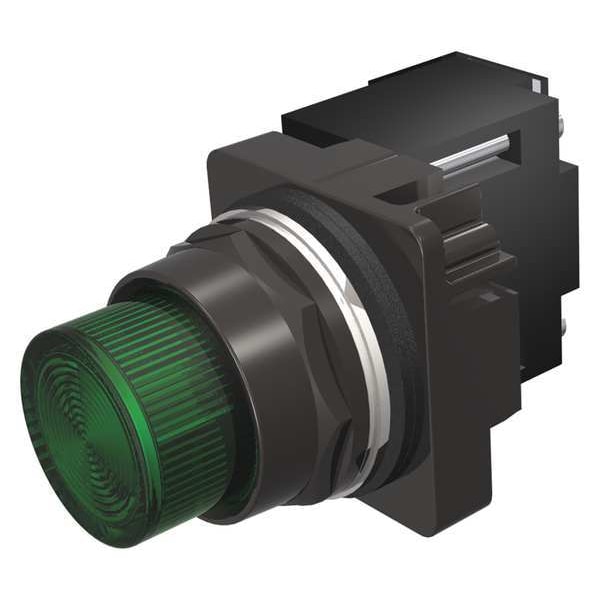

Pilot Light, Full Voltage, Grn, 24VAC/DC

product price: $60.39
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 24V AC/DC
  • Color Green
  • Lamp Type Incandescent
  • Shape Round
  • Terminal Connection Screw Terminal
See all product information

Product Information

Dimensions

Size 30 mm
Overall Height 1.7 in
Overall Depth 3.49 in
Overall Width 1.7 in
Panel Cutout Diameter 30 mm

Details

Item Pilot Light
Voltage 24V AC/DC
Color Green
Lamp Type Incandescent
Shape Round
Terminal Connection Screw Terminal
Lens Material Plastic
Lens Type Concentric Rings
Lamp Module Type Full Voltage
Basic Material Epoxy
Replacement Lamps 2FMP7
IP Rating IP20, IP66
Standards CSA, UL Listed
NEMA Rating 1, 12, 13, 3, 3R, 4, 4X
Lamp Voltage 24V AC/DC
Includes Lamp, Lamp Module, Operator Head
Body Material Metal
Body Finish Epoxy Coated
Includes Push-To-Test No Push-To-Test Included
Series 52
Lamp Color Green
Lamp Voltage - Maximum 24 V AC/DC
NEMA Enclosure Rating 1, 12, 13, 3, 3R, 4, 4X
Lens Color Green
Voltage Rating - Maximum 24 V
Includes Lamp Module Lamp Module Included
Resistance Properties Corrosion Resistant
Body Color Black
Includes Lens Lens Included

Description

Pilot Light, Voltage 24V AC/DC, Color Green, Lamp Type Incandescent, Shape Round, Terminal Connection Screw Terminal, Lens Material Plastic, 30 mm, Lamp Module Type Full Voltage, Basic Material Epoxy, Lens Type Concentric Rings, Lamp Voltage 24V AC/DC, Replacement Lamps 2FMP7, Body Material Metal, NEMA Rating 1, 12, 13, 3, 3R, 4, 4X, IP Rating IP20, IP66, Includes Lamp, Lamp Module, Operator Head, Standards CSA, UL Listed
