Shop SIEMENS

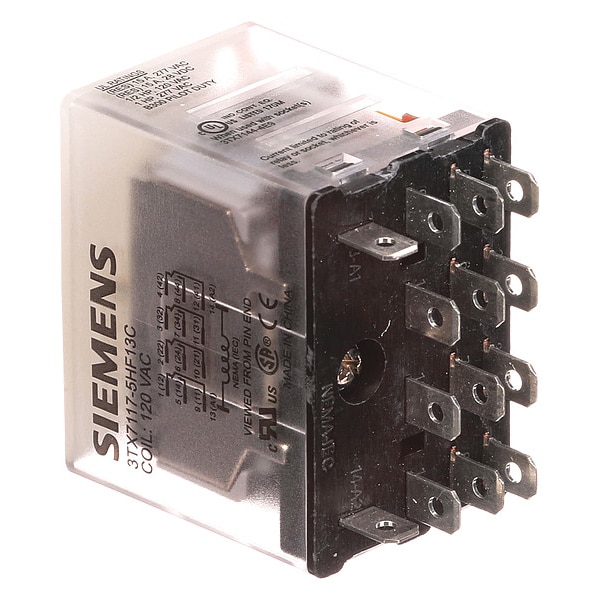

Plug-In, Plug-In Relay, Square, 15 A, 14 Pins

  • Mfr # 3TX7117-5HF13C

  • Zoro # G8367878

product price:
$
25.79
/ea

Key Features

Mounting Style
Plug-In
Base Shape
Square
Number of Pins
14
Coil Voltage
120V AC
Current Rating
15 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3TX7117-5HF13C
Zoro #
G8367878
UPC #
754554938554
Country of Origin
United States

Dimensions

Overall Height - Relay
1.08 in
Body Height
1.08 in
Body Width
1.54 in
Overall Depth
1.08 in
Body Depth
0.83 in

Details

Item
Plug-In Relay
Mounting Style
Plug-In
Base Shape
Square
Number of Pins
14
Coil Voltage
120V AC
Current Rating
15 A
Contact Form
4PDT
Contact Rating (AC)
15 A @ 120V
Features
Degree of Protection IP40, Shock Resistance 10gn
Power Consumption - Relay
1.5 VA, 1.5 W
Status Indicator
No Indicator
Safety Rating
ed
Input Voltage
120V AC
Contact Material
Silver Alloy
Standards
UL Listed
IP Rating
IP40
Power Consumption
1.5 W, 1.5 VA
Resistance Properties
Shock-Resistant
Weight
0.35 oz
Series
3TX71 Series
Push-To-Test Method
No Button
Horsepower @ 120V AC
1/2 hp
Horsepower @ 240V AC
3/4 hp
Motor Rated
Yes

Description

Plug-In Relay, Base Shape Square, Coil Voltage 120V AC, Contact Form 4PDT, Current Rating 15 A, Number of Pins 14, Status Indicator No Indicator, Contact Rating (AC) 15 A @ 120V, Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 3/4 hp, Mounting Style Plug-In, Push-To-Test Method No Button, Body Depth 0.83 in, Body Height 1.08 in, Body Width 1.54 in, Contact Material Silver Alloy, Features Degree of Protection IP40, Shock Resistance 10gn, Input Voltage 120V AC
