  9. Threaded Globe Valve, 1/2 In, 24VAC, NO
This item is Discontinued.

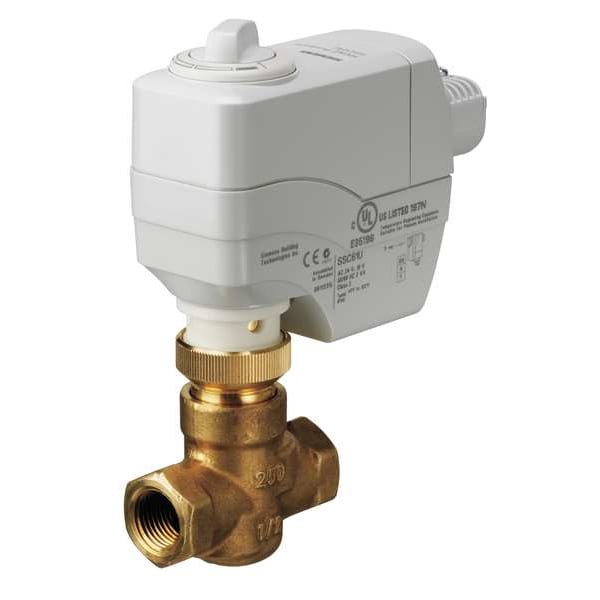

Siemens Threaded Globe Valve, 1/2 In, 24VAC, NO 259-02036

Threaded Globe Valve, 1/2 In, 24VAC, NO (Discontinued)

  • Mfr # 259-02036
  • Zoro # G1289066
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
259-02036
Zoro #
G1289066
UPC #
094713648963
Country of Origin
United States

Dimensions

Depth (In.)
2 in
Connection Type/Size (In.)
(F)NPT 1/2
Width (In.)
4 3/4 in
Height (In.)
5 1/2 in
Overall Length
5 1/2 in
Port Connection Size
1/2 in
Overall Depth
2 in
Overall Width
4 3/4 in

Details

Item
Threaded Globe Valve
Body Material
Brass
Voltage
24V AC
For Use With
Water or Glycol Solution 50% Max
Electrical Connections
Terminal Block
Max. Water Temp. (Deg. F)
250 Degrees F
Description/Special Features
Manual Override
Type
Normally Open
Specifications
2 Position Floating
Safe Working Water PSI
250 psi
Coefficient of Volume
1.6
Agency Compliance
cUL, UL Plenum Rated
Includes
3/8 in Conduit Connections/Plenum Cable
Actuator Type
Electric
Operating Temperature - Minimum
41 Degrees F
Frequency
50/60 Hz
Port Connection Type
NPT
Includes Electrical Leads
Electrical Leads Included
Valve Type
Globe
Standards
C-UL, CSA C22.2 No. 24-93, UL 873, UL Listed
Body Pattern
Two-Way
Actuator Voltage
24V AC
Includes Actuator
Actuator Included
Actuator Control Signal
Floating
Fluid Temperature - Maximum
250 Degrees F
Gasket/Plug Material
Ethylene Propylene
Application
Convectors, Fan Coils, Radiators, Reheat Coils, Unit Conditioners
Allowable Pressure - Maximum
250 psi
Fluid Temperature - Minimum
35 Degrees F
For Media
Water
Stem Material
Stainless Steel
Installation Orientation
Vertical Preferred
Actuator Return Action
Non-Spring Return
Spring Action
Non-Spring Return
Close-Off Pressure
120 psi
Distance Between Inlet and Outlet Port
2 3/4 in
Valve Action
Normally Open
Coefficient of Volume (Cv)
1.6
Operating Temperature - Maximum
122 Degrees F
Port Connection Gender
Female

Description

Threaded Globe Valve, Actuator Control Pressure - Maximum Not Applicable, Actuator Control Pressure - Minimum Not Applicable, Actuator Control Signal Floating, Actuator Return Action Non-Spring Return, Actuator Type Electric, Actuator Voltage 24V AC, Allowable Pressure - Maximum 250 psi, Application Convectors, Fan Coils, Radiators, Reheat Coils, Unit Conditioners, Body Material Brass, Body Pattern Two-Way, Bypass Port Coefficient of Volume (Cv) Not Applicable, Close-Off Pressure 120 psi
