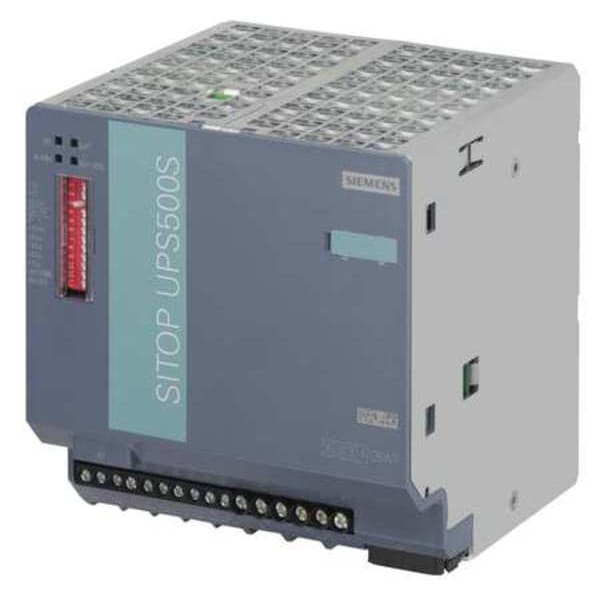

Siemens UPS System, 208VA, Standby, Out: 24V DC In: 24V DC 6EP1933-2EC51 - main

UPS System, 208VA, Standby, Out: 24V DC In: 24V DC

  • Mfr # 6EP1933-2EC51

  • Zoro # G3968544

product price:  $1,249.99
/ea
Free Shipping & Returns

Key Features

VA Rating - UPS Systems
208.0 VA
UPS Type
Standby
Power Rating
208VA
Mounting
DIN Rail
Wattage
360 W
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6EP1933-2EC51
Zoro #
G3968544
UPC #
040892692709
Country of Origin
Romania

Dimensions

Height
5 in
Depth
5 in
Cord Length
No Cord
Width
5 in
Overall Depth
4.92 in
Overall Width
4.72 in
Overall Height
4.92 in

Details

Item
UPS System
VA Rating - UPS Systems
208.0 VA
UPS Type
Standby
Power Rating
208VA
Mounting
DIN Rail
Wattage
360 W
Input Voltage
24V DC
Output Voltage
24V DC
Backup Time (Half/Full Load)
-/16.8 min
Outlet Type
Hardwired
Medical Grade
No
Number of Outlets
0
Special Features
Maintenance-Free DC UPS with High Capacity Double-Layer Capacitors, Mounting Location Does Not Require Ventilation, Quick Restoration of Buffer Readiness
Standards
cCSAus, CE, CSA C22.2 No. 107.1, cULus-Listed, EAC, UL, UL 508
Input Current
17.5 A / 15.2 A
Transfer Time
0 msec
Fax/Modem Line Protection
No
Display Type
LED
NEMA Receptacle Configuration
No Configuration
Ports
USB
Includes
For 24V DC Back-up in Combination with a 24V DC Switch Mode Power Supply
Automatic Volts Regulation
No
Input Connection
Screw Terminal
Voltage
24 VDC
Housing Material
Metal
min. rated supply voltage with DC
22 volt
max. output voltage
24.7 volt
Output current
15 ampere
Protection type IP
IP20
Bridging time
9 second
min. output voltage
24 volt
Design of electrical connection
USB
description of product type
Basic unit 5 kWs
max. rated supply voltage with DC
29 volt
Supply voltage type
DC
Output voltage for SPC is regulated
Yes
Output Ports Included
USB
Power Rating - Real
360 W
Receptacle Configuration
Hardwired
Automatic Voltage Regulation
No Automatic Voltage Regulation
Operating Temperature - Maximum
140 Degrees F
Number of Outlets - Surge Only
0
Operating Temperature - Minimum
32 Degrees F
Input Current - Maximum
15 A
Data Line Protection
No Data Line Surge Protection
Transfer Time - Maximum
0 msec
Number of Outlets - UPS
0
Run Time - Full Load
16.8 min
Power Rating - Apparent
208 VA

Description

UPS System, Standby, Power Rating 208 VA, Wattage 360 W, Input Voltage 24V DC, Output Voltage 24V DC, Backup Time (Half/Full Load) --/16.8 min, Mounting DIN Rail, Outlet Type Hardwired, Number of Outlets 0, Medical Grade Not Medical Grade Approved, NEMA Receptacle Configuration No Configuration, Automatic Volts Regulation No, Fax/Modem Line Protection No, Transfer Time 0 msec, Width 5 in, Depth 5 in, Height 5 in, Cord Length No Cord, Display Type LED, N/A Hz, Input Current 17.5 A / 15.2 A
