This item is Discontinued.

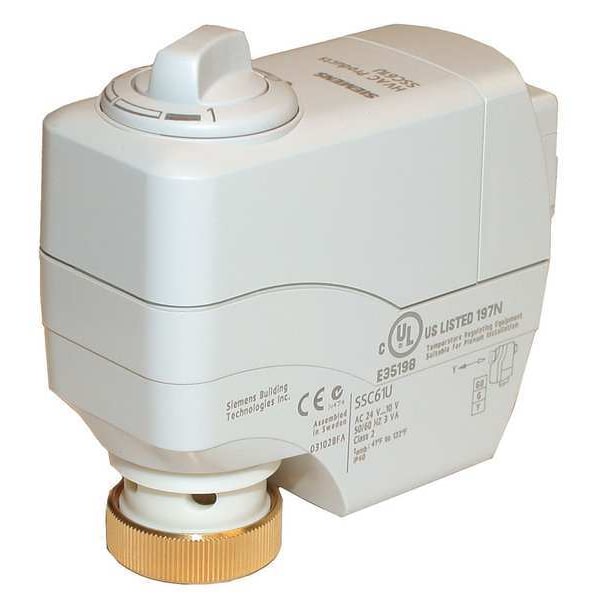

Siemens Valve Actuator, 24V, Spring Return SSC61.5U

Valve Actuator, 24V, Spring Return (Discontinued)

  • Mfr # SSC61.5U
  • Zoro # G8492075
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SSC61.5U
Zoro #
G8492075
UPC #
-
Country of Origin
China

Dimensions

Width
4 1/2 in
Depth
2 in
Height
4 1/2 in
Overall Height
4 3/8 in
Electrical Lead Length
8 in
Overall Depth
2 in
Stroke Length
1/4 in
Overall Width
5 1/2 in

Details

Item
Electric Zone Valve Actuator
Voltage
24V AC/DC
Signal Type
Proportional
Torque
2,655 in-lb
Cycle Time
30 sec
For Use With
MT Series Globe Valves
Type of Actuator
Spring Return
Electrical Connections
Terminal Block
Standards
CE, UL Listed
Power Consumption
3.8 VA
Product Type
Electric Zone Valve Actuator
Products By Industry
General Approach
Frequency
50/60 Hz
Control Signal
Proportional
Application
Air Conditioning, Ventilation, Chilled/Hot Water Control
Compatible Valve Body Pattern
Three-Way, Two-Way
Return Action
Spring Return
Mounting Style
Direct Mount
NEMA Rating
1
Operating Temperature - Maximum
122 Degrees F
Housing Material
Plastic
Includes Electrical Leads
Electrical Leads Not Included
Compatible Valve Action
Normally Closed, Normally Open
Compatible Close-Off Pressure
15 psi
Operating Temperature - Minimum
41 Degrees F
Electrical Connection Type
Screw Terminals

Description

Electric Zone Valve Actuator, Application Air Conditioning, Ventilation, Chilled/Hot Water Control, Auxiliary Contact Form Not Applicable, Compatible Close-Off Pressure 15 psi, Compatible Valve Action Normally Closed, Normally Open, Compatible Valve Body Pattern Three-Way, Two-Way, Control Signal Proportional, Cycle Time 30 sec, Electrical Connection Type Screw Terminals, Electrical Lead Length 8 in, Frequency 50/60 Hz, Housing Material Plastic
