Shop All Zone Valves and Accessories
Siemens

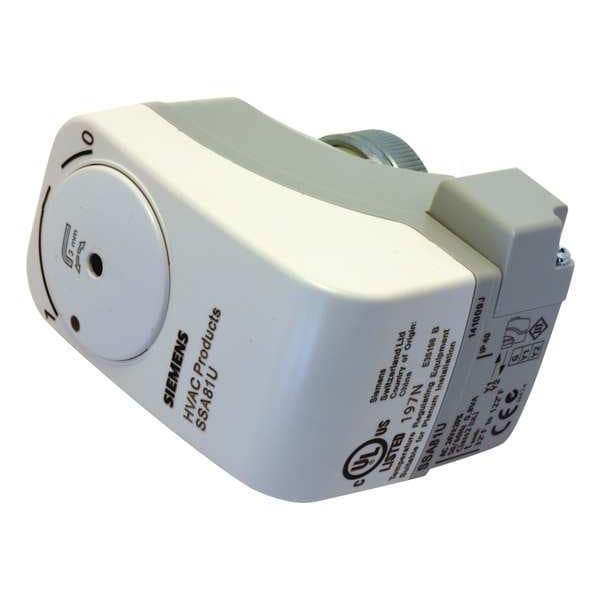

Zone Valve Actuator, 24VAC, NormallyClosed

original price: $91.98
7% off
new price: $85.08
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type of Actuator Normally Closed
  • Closeoff Pressure Type Standard
  • Signal Type Proportional
  • Voltage 24V AC
  • Max. Water Temp. 122 Degrees F
See all product information

Product Information

Dimensions

Width 4 17/64 in
Depth 1 29/32 in
Height 4 17/64 in
Overall Width 3 5/16 in
Electrical Lead Length 8 ft
Overall Height 3 1/4 in
Stroke Length 1/8 in
Overall Depth 1 7/8 in

Details

Item Electric Zone Valve Actuator
Type of Actuator Normally Closed
Closeoff Pressure Type Standard
Signal Type Proportional
Voltage 24V AC
Max. Water Temp. 122 Degrees F
For Use With Zone Valves 1/10 In Stroke
Agency Compliance UL873
Electrical Connections Wire
Compatible Valve Body Pattern Two-Way
Product Type Electric Zone Valve Actuator
Cycle Time 150 sec
Housing Material Plastic
Control Signal Floating Point
Electrical Connection Type Cable
Standards UL Listed
NEMA Rating 1
Compatible Series 599
Return Action Non-Spring Return
Operating Temperature - Maximum 230 Degrees F
Application Air Conditioning, Heating, Ventilation
Number of Auxiliary Switches 0
Compatible Valve Action Normally Closed
Torque 23 in-lb
Operating Temperature - Minimum 34 Degrees F
Includes Electrical Leads Electrical Leads Included
Compatible Close-Off Pressure 44 psi
Frequency 60 Hz

Description

Electric Zone Valve Actuator, Application Air Conditioning, Heating, Ventilation, Auxiliary Contact Form Not Applicable, Compatible Close-Off Pressure 44 psi, Compatible Series 599, Compatible Valve Action Normally Closed, Compatible Valve Body Pattern Two-Way, Control Signal Floating Point, Cycle Time 150 sec, Electrical Connection Type Cable, Electrical Lead Length 8 ft, Frequency 60 Hz, Housing Material Plastic, Includes Electrical Leads Electrical Leads Included, NEMA Rating 1
