Simmons

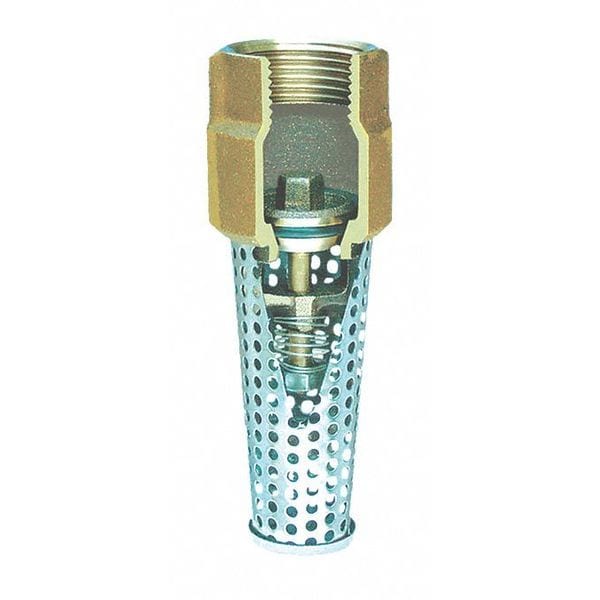

3/4" NPT Bronze Foot Valve

product price: $30.85
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Hex Size 1-3/8"
  • Connection Type FNPT x FNPT
  • Valve Body Design Inline
  • Body Material Silicon Bronze
  • Strainer Material - Foot Valves Stainless Steel
See all product information

Product Information

  • Brand Simmons
  • MFR # 452SB
  • Zoro # G6268713
  • UPC #
    008391019427
  • Country of Origin United States
  • Category Foot Valves

Dimensions

Hex Size 1-3/8"
Width 1 3/8 in
Size 3/4"
Pipe or Tube Size - Valves 3/4 in
Overall Height 3 3/4 in
Length 1 3/8 in

Details

Item Foot Valve
Connection Type FNPT x FNPT
Valve Body Design Inline
Body Material Silicon Bronze
Strainer Material - Foot Valves Stainless Steel
Max. Water Pressure - Valves 400 psi
Cracking Pressure - Valves 0.5 psi
Seat Material Bronze
Connection Type - Valves FNPT x FNPT
Mounting Position Any
Max. Steam Pressure 400 psi
Seat Material - Valves Bronze
Screen Material Stainless Steel
Max. Temp. 190 Degrees F
Max. Temp. - Valves 190 Degrees F
Mounting Orientation - Valves Horizontal, Vertical
Item - Foot Valves Foot Valve
Body Material - Valves Bronze
Spring Material Stainless Steel
Material of Construction Bronze
Flow Design Single
Seal Material Buna N
Cracking Pressure 0.5 psi
Application - Valves Pumps
Max. Water Pressure 400 psi
Cap to Inlet Center 1 1/2 in
Max. Steam Pressure - Valves 400 psi WSP
Max. Pressure 400 psi
Design - Foot Valves Spring
Seal Material - Valves Buna-N
Standards NSF 372, 61 Certified
Design Spring
Strainer Material Stainless Steel

Description

Item - Foot Valves Foot Valve, Flow Design Single, Design Spring, Application - Valves Pumps, Valve Body Design Inline, Body Material - Valves Bronze, Strainer Material Stainless Steel, Pipe or Tube Size - Valves 3/4 in, Connection Type - Valves FNPT x FNPT, Max. Steam Pressure - Valves 400 psi WSP, Max. Water Pressure - Valves 400 psi, Cracking Pressure - Valves 0.5 psi, Max. Temp. - Valves 190 Degrees F, Mounting Orientation - Valves Horizontal, Vertical, Seat Material - Valves Bronze
