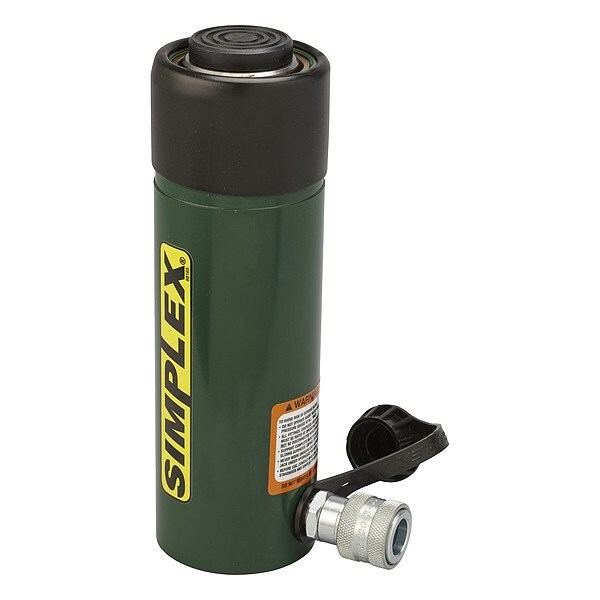

25 TON SPR. RET. S/A 6.19" STROKE CYL.
Mfr # R256
Zoro # G012655714
product price:Â $975.99
/ea
Free Shipping & Returns
Key Features
Bore Dia.
2.56 in
Cylinder Type
General Purpose
Stroke Length
6 3/16 in
Plunger Thread Size
1.5-16 UN 2B
Extended Height
16.94 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- R256
- Zoro #
- G012655714
- UPC #
- 662005302925
- Country of Origin
- United States
Dimensions
- Bore Dia.
- 2.56 in
- Stroke Length
- 6 3/16 in
- Plunger Thread Size
- 1.5-16 UN 2B
- Extended Height
- 16.94 in
- Plunger Dia.
- 2.25 in
- Collar Thread Size
- 3.31"-12
- Outside Dia.
- 3.37 in
- Retracted Height
- 10.75 in
- Base Bolt Circle Dia.
- 2.31 in
- Base Mounting Thread Size
- 0.5"-13
- Nominal Stroke Length
- 6 in
Details
- Item
- Cylinder
- Cylinder Type
- General Purpose
- Weight
- 22 lb
- Max. Pressure
- 10,000 psi
- Body Material
- Steel
- Single Acting/Double Acting
- Single Acting
- Effective Push Area
- 5.16 sq in
- Max. Push Capacity
- 25 ton
- Nominal Capacity
- 25 ton
- Oil Capacity Push
- 32.23 cu in
Description
Cylinder, Single Acting, General Purpose, Steel, Nominal Capacity 25 ton, Max. Push Capacity 25 ton, Stroke Length 6 3/16 in, Nominal Stroke Length 6 in, Effective Push Area 5.16 sq in, Max. Pressure 10,000 psi, Oil Capacity Push 32.23 cu in, Retracted Height 10.75 in, Extended Height 16.94 in, Outside Dia. 3.37 in, Plunger Dia. 2.25 in, Plunger Thread Size 1.5-16 UN 2B, Collar Thread Size 3.31 In.-12, Base Bolt Circle Dia. 2.31 in, Base Mounting Thread Size 0.5 In.-13
