  11. Lifting Bag, 27.7 Ton, 24x24
Shop All Lifting Bag Accessories
Simplex

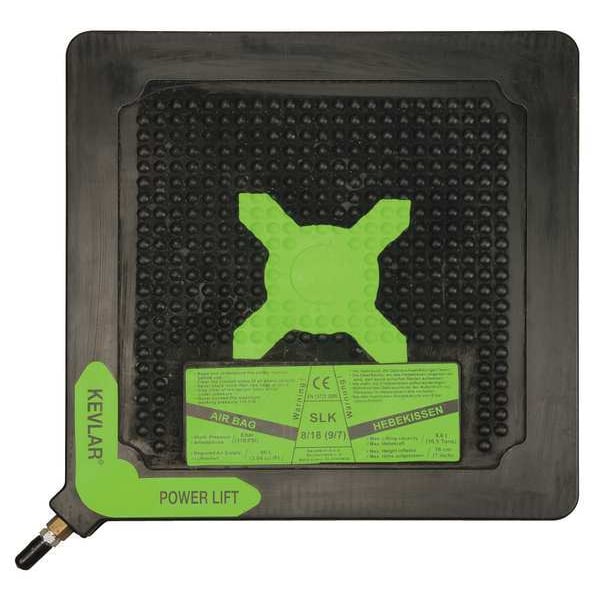

Lifting Bag, 27.7 Ton, 24x24

product price: $2,978.00
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Pneumatic
  • Reinforcement Kevlar(R)
  • Air Required (Cu. Ft.) 14.7 cu ft
  • Burst Pressure (PSI) 464 psi
  • Connector Type Multiple Options
See all product information

Product Information

Dimensions

Length (In.) 24 in
Max. Lift Height (In.) 11 13/16 in
Extended Height (In.) 13 in
Collapsed Height (In.) 1.2 in
Width (In.) 24 in
Bag Width 24 in
Collapsed Height 1 3/16 in
Inlet Size 1/4 in
Bag Length 24 in
Maximum Lifting Height 11 13/16 in
Overall Length 24 in
Overall Width 24 in

Details

Item Lifting Bag
Type Pneumatic
Reinforcement Kevlar(R)
Air Required (Cu. Ft.) 14.7 cu ft
Burst Pressure (PSI) 464 psi
Connector Type Multiple Options
Max. Pressure (PSI) 116 psi
Material 2 Ply Kevlar(R) with Neoprene
Capacity (Tons) 22.7 ton
Number of Plies Two-Ply
Weight 24.6 lb
For Fluid Type Compressed Air
Air Inlet Type NPT
System of Measurement Inch
Weight Capacity 27.7 ton
Air Volume Required 14.7 cu ft
Reinforcement Material Kevlar(R)
Maximum Operating Pressure 116 psi
Series Series B
Inlet Gender Female
Bag Material Kevlar(R) with Neoprene

Description

Lifting Bag, Weight Capacity 27.7 ton, Bag Length 24 in, Bag Width 24 in, Maximum Lifting Height 11 13/16 in, Air Volume Required 14.7 cu ft, Bag Material Kevlar(R) with Neoprene, Inlet Size 1/4 in, Air Inlet Type NPT, Number of Plies Two-Ply, Maximum Operating Pressure 116 psi, Reinforcement Material Kevlar(R), Burst Pressure (PSI) 464 psi, Inlet Gender Female, Weight 24.6 lb, For Fluid Type Compressed Air, Series Series B, System of Measurement Inch, Overall Width 24 in, Overall Length 24 in
