Shop All Lifting Bag Accessories
Simplex

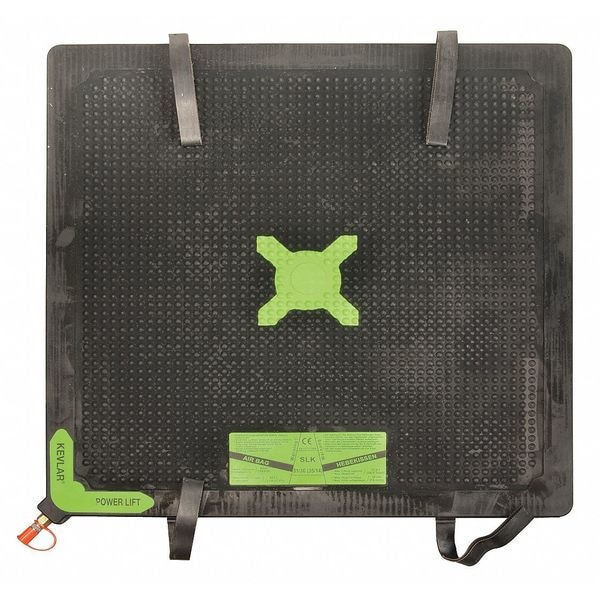

Lifting Bag, 3.1 Ton, 9x9

product price: $943.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Pneumatic
  • Collapsed Height (In.) 1.1 in
  • Length (In.) 9 in
  • Material 2 Ply Kevlar with Neoprene
  • Connector Type Multiple Options
See all product information

Product Information

Dimensions

Collapsed Height (In.) 1.1 in
Length (In.) 9 in
Max. Lift Height (In.) 5 7/64 in
Width (In.) 9 in
Extended Height (In.) 6.2 in
Bag Length 9 in
Inlet Size 1/4 in
Overall Width 9 in
Collapsed Height 1 1/8 in
Maximum Lifting Height 5 1/8 in
Bag Width 9 in
Overall Length 9 in

Details

Item Lifting Bag
Type Pneumatic
Material 2 Ply Kevlar with Neoprene
Connector Type Multiple Options
Reinforcement Kevlar
Burst Pressure (PSI) 464 psi
Capacity (Tons) 3.1 ton
Air Required (Cu. Ft.) 0.53 cu ft
Max. Pressure (PSI) 116 psi
Bag Material Kevlar(R) with Neoprene
Weight Capacity 3.1 ton
Air Volume Required 0.53 cu ft
For Fluid Type Compressed Air
Maximum Operating Pressure 116 psi
Series Series B
Weight 2.8 lb
Inlet Gender Female
System of Measurement Inch
Air Inlet Type NPT
Reinforcement Material Kevlar(R)
Number of Plies Two-Ply

Description

Lifting Bag, Weight Capacity 3.1 ton, Bag Length 9 in, Bag Width 9 in, Maximum Lifting Height 5 1/8 in, Air Volume Required 0.53 cu ft, Bag Material Kevlar(R) with Neoprene, Inlet Size 1/4 in, Air Inlet Type NPT, Number of Plies Two-Ply, Maximum Operating Pressure 116 psi, Reinforcement Material Kevlar(R), Burst Pressure (PSI) 464 psi, Inlet Gender Female, Weight 2.8 lb, For Fluid Type Compressed Air, Series Series B, System of Measurement Inch, Overall Width 9 in, Overall Length 9 in
