  11. 1/2" Tube 316 SS Straight Union

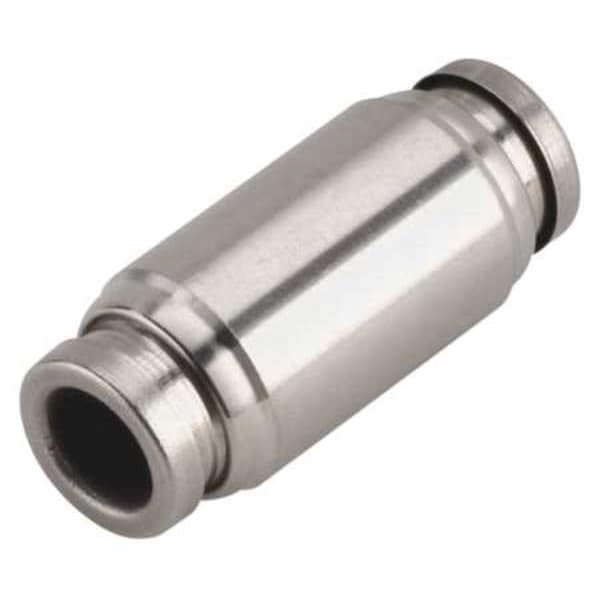

Smc 1/2" Tube 316 SS Straight Union KQG2H13-00 - main

1/2" Tube 316 SS Straight Union

  • Mfr # KQG2H13-00

  • Zoro # G4589794

product price: $28.79
/ea

Key Features

Max. Pressure
435 psi
Application
Air, Non-Potable Water, Steam
Fitting Connection Type
Tube x Tube
Tube Size
1/2 in
Standards
RoHS
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
KQG2H13-00
Zoro #
G4589794
UPC #
-
Country of Origin
Japan

Dimensions

Tube Size
1/2 in
Overall Length
38 mm
Fitting Side A Tube Outer Diameter
1/2 in
Fitting Side B Tube Outer Diameter
1/2 in
Fitting Side 1 Tube Outer Diameter
1/2 in
Fitting Side 2 Tube Outer Diameter
1/2 in

Details

Item
Push-Fit Union Fitting
Max. Pressure
435 psi
Application
Air, Non-Potable Water, Steam
Fitting Connection Type
Tube x Tube
Standards
RoHS
Temp. Range
23 Degrees to 302 Degrees F
Specific Pipe Fitting Shape
Union
Fitting Shape
Straight
Tube Fitting Material
316 Stainless Steel
Basic Pipe Fitting Shape
Union
Basic Pipe Fitting Material
Metal
Color
Silver
Pipe Fitting Connection Type
Tube x Tube
System of Measurement
Imperial
Compatible Tube Material
FEP, Nylon, PFA, Polyolefin, Polyurethane, Soft Nylon
Minimum Operating Temperature
41 Degrees F
Fitting Material
Stainless Steel
Fitting Side A Connection Type
Push-to-Connect
Material Grade
316
Release Type
Button
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Not Included
Maximum Operating Temperature
302 Degrees F
Maximum Operating Pressure
145 psi
Resistance Properties
Corrosion-Resistant
Fitting Side B Connection Type
Push-to-Connect
Connector Type
Coupling
For Media Type
Air, Non-Potable Water, Gases
Series
KQG2
Fitting Side 1 Connection Type
Push-to-Connect
Operating Temperature - Maximum
302 Degrees F
Operating Pressure - Maximum
145 psi
Operating Temperature - Minimum
41 Degrees F
Fitting Side 2 Connection Type
Push-to-Connect

Description

The SMC - KQG2H13-00 is a push-on hose fitting that is used in various pneumatic applications. Part of SMC's superior engineering, it is intended for installation and removal of the hose without specific tools. This fitting is constructed to withstand use in various industrial and commercial settings.

Key Features:

  • The hose fitting has a tube size of 1/2” that specifies the inside diameter of the hose or tube to be connected.
  • It has a maximum operating pressure of 145 PSI, denoting the amount of pressure that this fitting can handle without failing.
  • The fitting has a temperature range of 32°F to 140°F, indicating its operational temperature range.
  • Designed with a port size of 1/2, which relates to the size of the port where the hose will be connected.
  • Manufactured with body and collar material of stainless steel (SUS303 equivalent) that has materials known for corrosion and heat resistance.
  • The product features a seal material of FKM that is made from materials known for chemical and heat resistance, intended for a secure fit and leak prevention.
