Smc

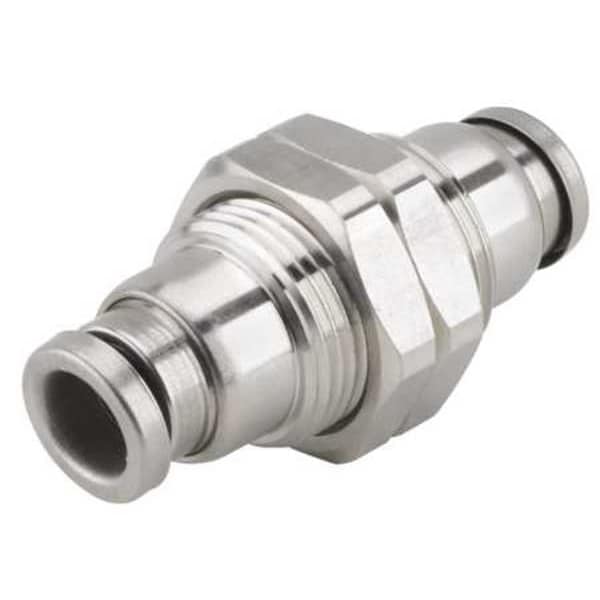

1/4" Tube 316 SS Bulkhead Union

product price: $45.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Max. Pressure 435 psi
  • Application Air, Non-Potable Water, Steam
  • Fitting Connection Type Tube x Tube
  • Specific Fitting Shape Straight Bulkhead Union
  • Tube Fitting Material 316 Stainless Steel
See all product information

Product Information

Dimensions

Tube Size 1/4 in
Hex Size 17 mm
Overall Length 35 13/32 mm
Fitting Side A Tube Outer Diameter 1/4 in
Fitting Side B Tube Outer Diameter 1/4 in

Details

Max. Pressure 435 psi
Application Air, Non-Potable Water, Steam
Fitting Connection Type Tube x Tube
Specific Fitting Shape Straight Bulkhead Union
Tube Fitting Material 316 Stainless Steel
Color Silver
Basic Pipe Fitting Shape Union
Standards Current Food Sanitation Law Standards, RoHS
Specific Pipe Fitting Shape Bulkhead Union
Temp. Range 23 Degrees to 302 Degrees F
Item Bulkhead Union
Pipe Fitting Connection Type Tube x Tube
Basic Pipe Fitting Material Metal
Resistance Properties Corrosion-Resistant
Material Grade 316
Release Type Button
Fitting Material Stainless Steel
Compatible Tube Material FEP, Nylon, PFA, Polyolefin, Polyurethane, Soft Nylon
Minimum Operating Temperature 41 Degrees F
Maximum Operating Temperature 302 Degrees F
Fitting Side A Connection Type Push-to-Connect
Maximum Operating Pressure 145 psi
Fitting Side B Connection Type Push-to-Connect
Includes Pre-Applied Thread Sealant No
System of Measurement Imperial

Description

Bulkhead Union, Application Air, Non-Potable Water, Steam, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type Push-to-Connect, Fitting Side A Tube Outer Diameter 1/4 in, Fitting Side B Tube Outer Diameter 1/4 in, Fitting Material Stainless Steel, Material Grade 316, Color Silver, Includes Pre-Applied Thread Sealant No, Maximum Operating Pressure 145 psi, Maximum Operating Temperature 302 Degrees F, Overall Length 35 13/32 mm
