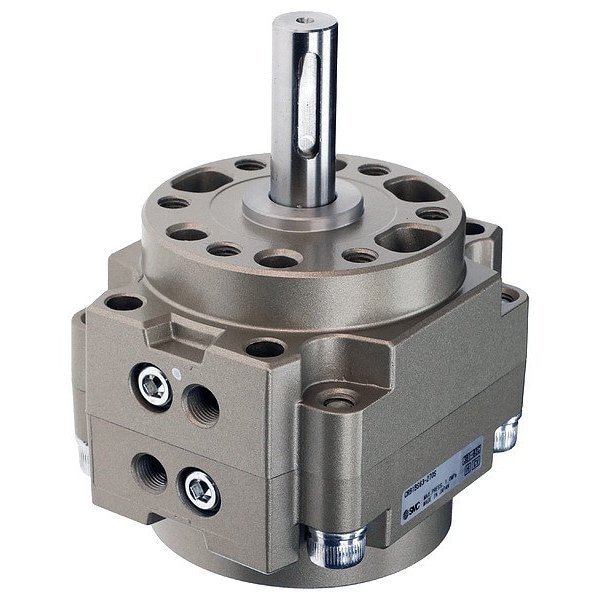

ACTUATOR, ROTARY, VANE TYPE
- Mfr # CRB1BS63-270S
- Zoro # G813344756
product price:Â
$
284.99
/ea
Free Shipping & Returns
Key Features
Overall Length
82 mm
Magnetic Piston
Non-Magnetic Piston
Standards
RoHS Compliant
Cushion Type
Rubber Cushion
Overall Height
146 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- CRB1BS63-270S
- Zoro #
- G813344756
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Overall Length
- 82 mm
- Overall Height
- 146 mm
- Keyway Length
- 25 mm
- Bore Diameter
- 63 mm
- Shaft Diameter
- 15 mm
- Overall Width
- 98 mm
- Keyway Width
- 5 mm
- Keyway Depth
- 5 mm
- Inlet Size
- 1/8 in
- Shaft Length
- 45 mm
- Wire Rope Length
- 82 mm
- Length
- 82 mm
Description
Rotary Actuator, Actuator Style Single Vane, Maximum Output Torque 21 N-m, Rotation Angle 270 Degrees , Bore Diameter 63 mm, Maximum Operating Pressure 145 psi, Shaft Diameter 15 mm, Shaft Length 45 mm, Inlet Size 1/8 in, Air Inlet Type RC, Cushion Type Rubber Cushion, Magnetic Piston Non-Magnetic Piston, Weight 1.29 kg, Maximum Operating Temperature 140 Degrees F, Minimum Operating Pressure 21.76 psi, Minimum Operating Temperature 41 Degrees F, Standards RoHS Compliant, For Fluid Type Air
