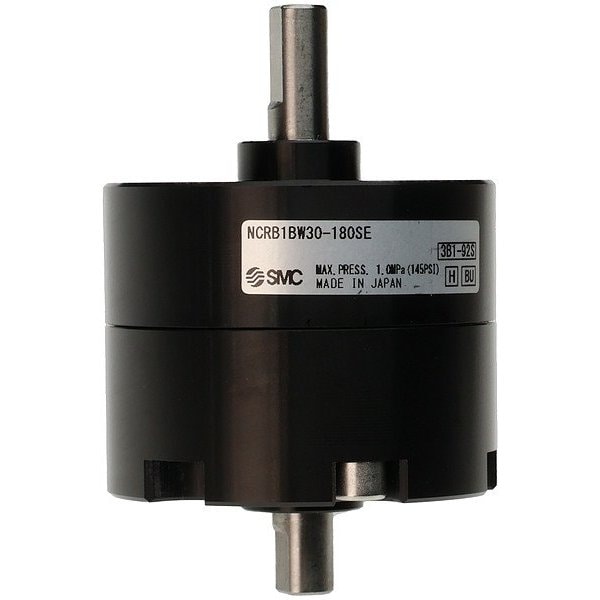

ACTUATOR, ROTARY, VANE TYPE

  • Mfr # NCRB1BW30-180SE
  • Zoro # G415380114
product price:
$
154.99
/ea
Free Shipping & Returns

Key Features

Cushion Type
Rubber Cushion
Output Shaft Type
Keyed Shaft
Mount Style
Basic
Overall Length
50.04 mm
Inlet Size
#10-32
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
NCRB1BW30-180SE
Zoro #
G415380114
UPC #
-
Country of Origin
Japan
Item
Rotary Air Actuator
Cushion Type
Rubber Cushion
Output Shaft Type
Keyed Shaft
Mount Style
Basic
Weight
0.36 lb
Minimum Operating Temperature
41 Degrees F
For Fluid Type
Air
Rotation Angle
180 Degrees
Magnetic Piston
Non-Magnetic Piston
System of Measurement
Metric
Maximum Operating Pressure
33.36 psi
Air Inlet Type
UNF
Maximum Operating Temperature
140 Degrees F
Standards
RoHS Compliant
Minimum Operating Pressure
14.5 psi
Actuator Style
Single Vane
Maximum Output Torque
32 in-lb
Port Location
Axial Ported

Description

Rotary Air Actuator, Actuator Style Single Vane, Maximum Output Torque 32 in-lb, Rotation Angle 180 Degrees , Bore Diameter 30 mm, Maximum Operating Pressure 33.36 psi, Shaft Diameter 7.94 mm, Shaft Length 17.02 mm, Inlet Size #10-32, Air Inlet Type UNF, Cushion Type Rubber Cushion, Magnetic Piston Non-Magnetic Piston, Weight 0.36 lb, Maximum Operating Temperature 140 Degrees F, Minimum Operating Pressure 14.5 psi, Minimum Operating Temperature 41 Degrees F, Standards RoHS Compliant
