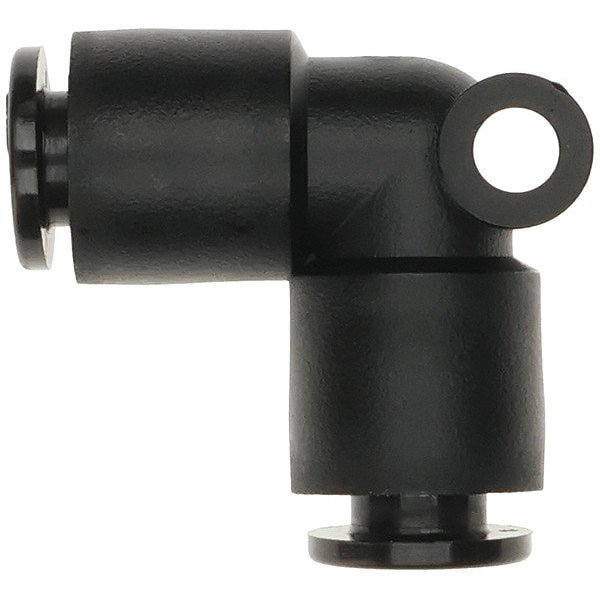

Antistatic Push-Fit Fitting, Elbow
Mfr # KAL06-00
Zoro # G316330102
product price: $7.59
/eaSold in multiples of 10 for $75.90
Key Features
Standards
RoHS, UL94
Fitting Material
Polybutylene
Overall Length
20 mm
System of Measurement
Metric
Application
Vacuum
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
KAL06-00
Zoro #
G316330102
UPC #
-
Country of Origin
Japan
Dimensions
Overall Length
20 mm
Center-to-End 1 Length
20 mm
Center-to-End 2 Length
20 mm
Fitting Side 1 Tube Outer Diameter
6 mm
Details
Standards
RoHS, UL94
Item
Fitting, Antistatic
Fitting Material
Polybutylene
System of Measurement
Metric
Application
Vacuum
Color
Black
Release Type
Button
For Media Type
Air
Operating Temperature - Minimum
32 Degrees F
Material Grade
C3604
Compatible Tube Material
Polyurethane, Nylon
Finish
Nickel-Plated
Operating Pressure - Maximum
100 kPa
Resistance Properties
Flame-Resistant
Fitting Side 1 Connection Type
Push-to-Connect
Connector Type
Union
Fitting Shape
Elbow
Series
KA
Operating Temperature - Maximum
104 Degrees F
Description
Fitting, Antistatic, Application Vacuum, Fitting Material Polybutylene, Material Grade C3604, Color Black, Overall Length 20 mm, Release Type Button, Standards RoHS, UL94, Compatible Tube Material Polyurethane, Nylon, Resistance Properties Flame-Resistant, System of Measurement Metric
