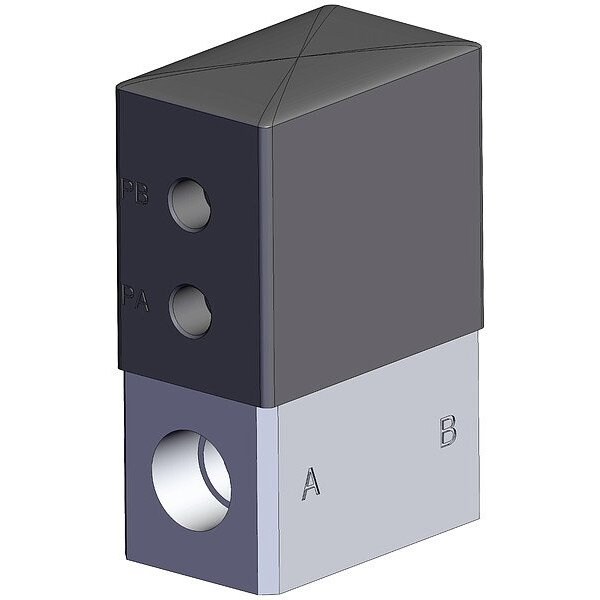

Chemical Liquid Valve, Female, NPT

  • Mfr # LVA10-01N-A

  • Zoro # G422441471

product price:  $221.99
/ea
Free Shipping & Returns

Key Features

Ambient Temperature - Minimum
0 Degrees C
Connection Type - Side 2
NPT
Fail Safe Position
Fail Closed
Connection Gender - Side 2
Female
Connection Size - Side 2
1/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LVA10-01N-A
Zoro #
G422441471
UPC #
-
Country of Origin
Japan

Dimensions

Connection Size - Side 2
1/8 in
Overall Height
49.5 mm
Nominal Valve Size
1/8 in
Connection Size - Side 1
1/8 in
Inlet Connection Size
1/8 in
Overall Length
33 mm
Wire Rope Length
33 mm

Details

Ambient Temperature - Minimum
0 Degrees C
Connection Type - Side 2
NPT
Fail Safe Position
Fail Closed
Connection Gender - Side 2
Female
Operating Temperature - Maximum
60 Degrees C
Inlet Connection Gender
Female
Stem Material
Polyphenylene Sulfide
Actuator Enclosure Material
Polyphenylene Sulfide
For Media
Chemicals
Connection Type - Side 1
NPT
Maximum Pressure - Operating
1 MPa
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL
Item
Chemical Liquid Valve
Inlet Connection Type
NPT
Operating Temperature - Minimum
0 Degrees C
Actuator Operation
Air to Air
Ambient Temperature - Maximum
60 Degrees C
Coefficient of Volume (Cv)
0.1
Connection Gender - Side 1
Female
Body Material
Stainless Steel
Diaphragm Material
PTFE
Valve Deactivated State
Normally Closed (NC)

Description

Chemical Liquid Valve, Coefficient of Volume (Cv) 0.1, Nominal Valve Size 1/8 in, Connection Type - Side 1 NPT, Connection Type - Side 2 NPT, For Media Chemicals, Diaphragm Material PTFE, Operating Temperature - Maximum 60 Degrees C, Maximum Pressure - Operating 1 MPa, Valve Deactivated State Normally Closed (NC), Body Material Stainless Steel, Seal Material Not Applicable, Stem Material Polyphenylene Sulfide, Fail Safe Position Fail Closed, Overall Length 33 mm

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
