Shop SMC

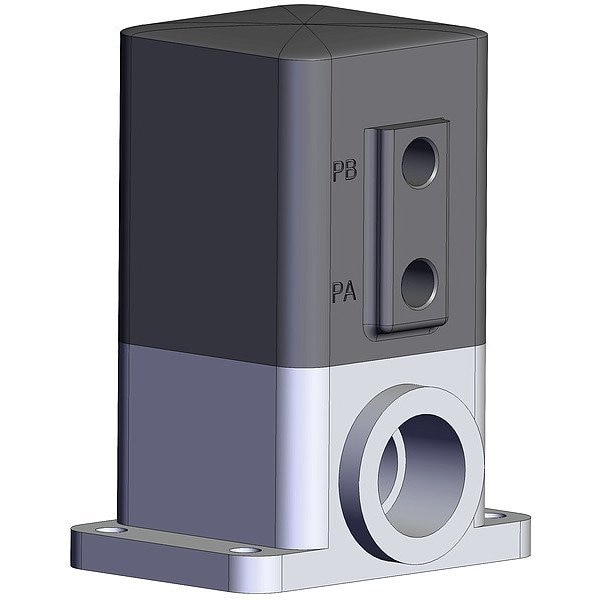

Chemical Liquid Valve, Female, NPT

  • Mfr # LVA21-02N-B

  • Zoro # G822441699

product price:  $110.99
/ea
Free Shipping & Returns

Key Features

Operating Temperature - Minimum
0 Degrees C
Fail Safe Position
Fail Open
Ambient Temperature - Maximum
60 Degrees C
Maximum Pressure - Operating
1 MPa
Coefficient of Volume (Cv)
0.4
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LVA21-02N-B
Zoro #
G822441699
UPC #
-
Country of Origin
Japan

Dimensions

Nominal Valve Size
1/4 in
Connection Size - Side 1
1/4 in
Connection Size - Side 2
1/4 in
Inlet Connection Size
1/4 in
Wire Rope Length
36 mm
Overall Height
57.5 mm
Overall Length
36 mm

Details

Operating Temperature - Minimum
0 Degrees C
Fail Safe Position
Fail Open
Ambient Temperature - Maximum
60 Degrees C
Maximum Pressure - Operating
1 MPa
Coefficient of Volume (Cv)
0.4
Stem Material
Polyphenylene Sulfide
Ambient Temperature - Minimum
0 Degrees C
Actuator Enclosure Material
Polyphenylene Sulfide
Connection Type - Side 2
NPT
Connection Gender - Side 2
Female
Actuator Operation
Air to Air
Connection Gender - Side 1
Female
Valve Deactivated State
Normally Open (NO)
Diaphragm Material
PTFE
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL
Connection Type - Side 1
NPT
For Media
Chemicals
Operating Temperature - Maximum
60 Degrees C
Item
Chemical Liquid Valve
Inlet Connection Type
NPT
Body Material
Polyphenylene Sulfide
Inlet Connection Gender
Female

Description

Chemical Liquid Valve, Coefficient of Volume (Cv) 0.4, Nominal Valve Size 1/4 in, Connection Type - Side 1 NPT, Connection Type - Side 2 NPT, For Media Chemicals, Diaphragm Material PTFE, Operating Temperature - Maximum 60 Degrees C, Maximum Pressure - Operating 1 MPa, Valve Deactivated State Normally Open (NO), Body Material Polyphenylene Sulfide, Seal Material Not Applicable, Stem Material Polyphenylene Sulfide, Fail Safe Position Fail Open, Overall Length 36 mm

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
