Shop SMC

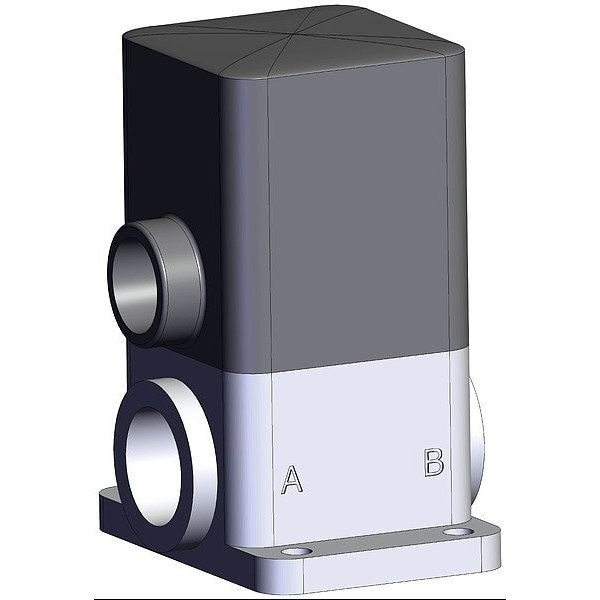

Chemical Liquid Valve, Female, Tube

  • Mfr # LVA20-02-B-Z
  • Zoro # G222441930
product price:
$
121.99
/ea
Free Shipping & Returns

Key Features

Connection Size - Side 2
1/4 in
Inlet Connection Gender
Female
For Media
Chemicals
Operating Temperature - Minimum
0 Degrees C
Body Material
Polyphenylene Sulfide
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LVA20-02-B-Z
Zoro #
G222441930
UPC #
-
Country of Origin
Japan
Item
Chemical Liquid Valve
Inlet Connection Gender
Female
For Media
Chemicals
Operating Temperature - Minimum
0 Degrees C
Body Material
Polyphenylene Sulfide
Diaphragm Material
PTFE
Actuator Operation
Air to Air
Connection Gender - Side 1
Female
Ambient Temperature - Minimum
0 Degrees C
Maximum Pressure - Operating
1 MPa
Stem Material
Polyphenylene Sulfide
Valve Deactivated State
Normally Closed (NC)
Actuator Enclosure Material
Polyphenylene Sulfide
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL
Fail Safe Position
Fail Closed
Coefficient of Volume (Cv)
0.4
Connection Type - Side 2
Tube
Operating Temperature - Maximum
60 Degrees C
Ambient Temperature - Maximum
60 Degrees C
Connection Gender - Side 2
Female

Description

Chemical Liquid Valve, Coefficient of Volume (Cv) 0.4, Nominal Valve Size 1/4 in, Connection Type - Side 2 Tube, For Media Chemicals, Diaphragm Material PTFE, Operating Temperature - Maximum 60 Degrees C, Maximum Pressure - Operating 1 MPa, Valve Deactivated State Normally Closed (NC), Body Material Polyphenylene Sulfide, Seal Material Not Applicable, Stem Material Polyphenylene Sulfide, Fail Safe Position Fail Closed, Overall Length 36 mm
