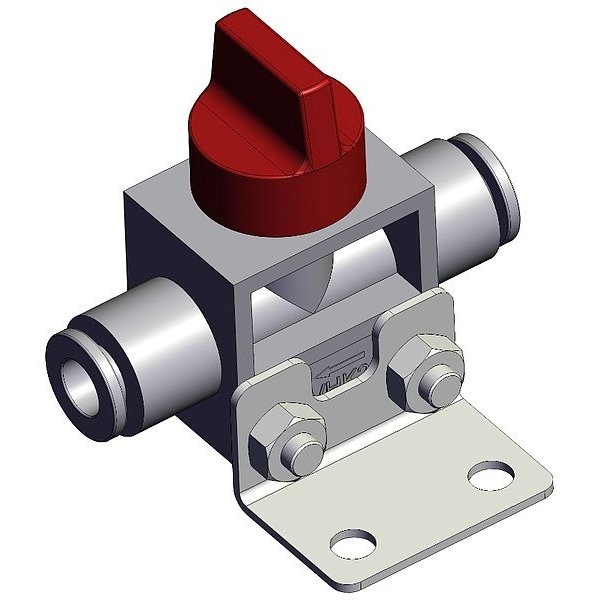

Finger valve, VHK, 44 1/2 mm, 48 mm
Mfr # VHK2A-06F-06FRL
Zoro # G315191810
product price:Â
$
13.01
/ea
Key Features
Series
VHK
Overall Height
44 1/2 mm
Overall Length
48 mm
Overall Width
18 mm
Seal Material
Buna-N
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- VHK2A-06F-06FRL
- Zoro #
- G315191810
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Overall Height
- 44 1/2 mm
- Overall Length
- 48 mm
- Overall Width
- 18 mm
- Exhaust Port Connection Size
- 6 mm
- Valve Port Connection Size
- 6 mm
- Wire Rope Length
- 48 mm
- Length
- 48 mm
Details
- Item
- Finger valve
- Series
- VHK
- Seal Material
- Buna-N
- Body Material
- Aluminum
- Operating Temperature - Minimum
- 0 Degrees C
- Vacuum Rating
- Vacuum Operable
- Coefficient of Volume (Cv)
- 0.35
- Number of Ports
- 2
- Standards
- RoHS Compliant
- For Media
- Air
- Valve Type
- Poppet
- Actuator Color
- Red
- Actuator Type
- Knob
- Body Style
- Side-Ported
- Operating Temperature - Maximum
- 60 Degrees C
- Operating Pressure - Maximum
- 1 MPa
Description
Finger valve, Body Material Aluminum, Overall Length 48 mm, Overall Height 44 1/2 mm, Overall Width 18 mm, Series VHK
