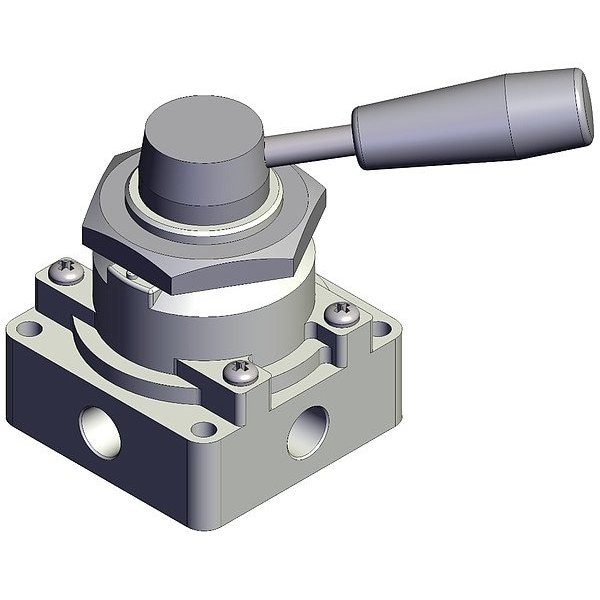

Hand Valve, VH, Two-Position, 105 mm
Mfr # VH312-N02
Zoro # G015191721
product price: $65.59
/eaKey Features
Series
VH
Number of Positions
Two-Position
Overall Height
105 mm
Overall Length
134 mm
Overall Width
74 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
VH312-N02
Zoro #
G015191721
UPC #
-
Country of Origin
Japan
Dimensions
Overall Height
105 mm
Overall Length
134 mm
Overall Width
74 mm
Valve Port Connection Size
1/4 in
Base Size
3/8 in
Details
Item
Hand Valve
Series
VH
Number of Positions
Two-Position
Body Material
Aluminum
Seal Material
Buna-N
For Media
Air
Operating Temperature - Minimum
-5 Degrees C
Coefficient of Volume (Cv)
1.25
Operating Pressure - Maximum
1 MPa
Valve Port Connection Type
NPT
Valve Type
Rotary
Standards
RoHS Compliant
Operating Temperature - Maximum
60 Degrees C
Lubrication
Lubrication Not Required
Actuator Type
Lever
Body Style
Panel-Mounted, Side-Ported
Description
Hand Valve, Body Material Aluminum, Overall Length 134 mm, Overall Height 105 mm, Overall Width 74 mm, Series VH
