Shop SMC
See all product information

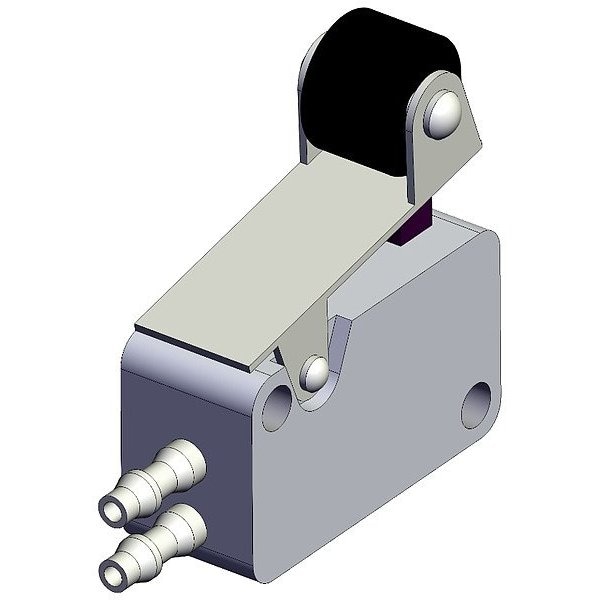

MECHANICAL VALVE
Mfr # VM1000-4NU-01
Zoro # G515197025
product price:Â $17.79
/eaKey Features
Series
VM1000
Overall Height
31 11/16 mm
Overall Length
38 3/16 mm
Overall Width
11 mm
Body Material
Aluminum
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- VM1000-4NU-01
- Zoro #
- G515197025
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Overall Height
- 31 11/16 mm
- Overall Length
- 38 3/16 mm
- Overall Width
- 11 mm
- Valve Port Connection Size
- 4 mm
Details
- Item
- Shuttle Valve
- Series
- VM1000
- Body Material
- Aluminum
- Seal Material
- Buna-N
- Actuator Type
- Roller
- Operating Temperature - Minimum
- -5 Degrees C
- Valve Type
- Poppet
- Number of Ports
- 3
- Lubrication
- Lubrication Not Required
- Actuator Material
- Stainless Steel
- Operating Temperature - Maximum
- 60 Degrees C
- Standards
- RoHS Compliant
- For Media
- Air
- Coefficient of Volume (Cv)
- 0.055
- Operating Pressure - Minimum
- 0 MPa
- Body Style
- Side-Ported
- Valve Action
- Normally Closed
- Operating Pressure - Maximum
- 0.8 MPa
- Valve Port Connection Type
- Push-On
Description
Shuttle Valve, Body Material Aluminum, Overall Length 38 3/16 mm, Overall Height 31 11/16 mm, Overall Width 11 mm, Series VM1000
